Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-JF-1824
Weight	91.33 kg
Dimensions (L x W x H)	5743 x 5304 x 1341 mm
Application	Assembly
Assembly Time	07:12

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion ControllerCE-CL-005-0001 - 377 X 282 X 144 mmObsolete	1

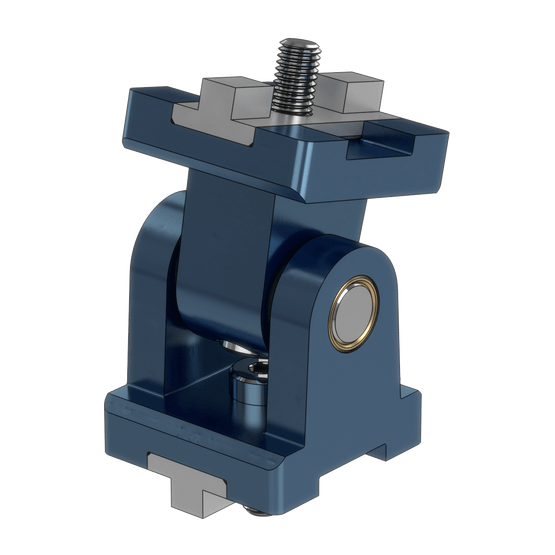

	45x45mm Hinge, 12mm Pin with BushingsMO-HG-002-0001 - 68 X 45 X 45 mmObsolete	2
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	1
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 3 days	1
	Timing Belt Actuator (855mm)MO-LM-016-0855 - 1035 X 67 X 120 mmShips in 3 days	2
	Rack and Pinion End StopMO-LM-019-0005 - 45 X 74 X 22 mmShips in 3 weeks	1

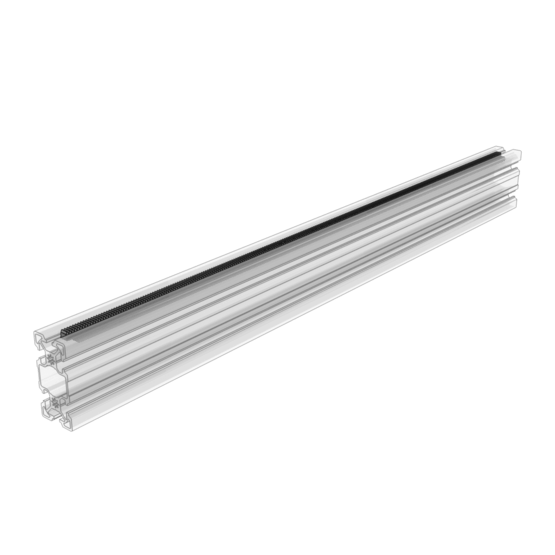

	Gear Rack, 810mmMO-LM-020-0810 - 823 X 10 X 15 mmShips in 3 weeks	1
	Rotary ActuatorMO-RM-002-0001 - 246 X 223 X 47 mmObsolete	7
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	9
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips next day	1
	45x45mm (1395mm) Aluminum ExtrusionST-EXT-001-1395 - 1395 X 45 X 45 mmShips next day	1
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	3
	90x90mm (1395mm) Aluminum ExtrusionST-EXT-005-1395 - 1395 X 90 X 90 mmShips next day	1
	22.5x22.5mm (585mm) Aluminum ExtrusionST-EXT-006-0585 - 585 X 22 X 22 mmShips next day	10
	22.5x22.5mm (720mm) Aluminum ExtrusionST-EXT-006-0720 - 720 X 22 X 22 mmShips next day	1
	3x3 Hole Aluminum Assembly PlateST-GP-001-0001 - 133 X 133 X 6 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	3
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips in 3 days	1
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	1
	1x5 Hole Aluminum Assembly PlateST-GP-001-0020 - 223 X 43 X 6 mmShips next day	1
	45mm x 45mm In-line Mounting Block for Right Angle ConnectionsST-GP-002-0001 - 44 X 44 X 26 mmObsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	230
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	110
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	11
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	44
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	62
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	3
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	2
	M8 x 35mm Screw, Partially ThreadedHW-FN-003-0035 - 35 X 13 X 40 mmShips next day	2
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	5
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	3
	M8-1.25 x 6mm Set ScrewHW-FN-014-0001 - 6 X 8 X 8 mmShips next day	2
