xmas tree

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-IC-16
Weight	34.21 kg
Dimensions (L x W x H)	2525 x 3044 x 1056 mm
Application	Material Handling
Assembly Time	04:26

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Rubber BumperHW-BP-001-0002 - 50 X 80 X 43 mmShips next day	1

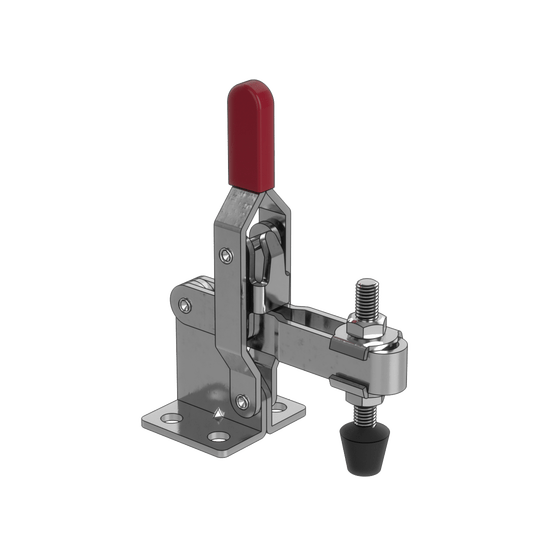

	63mm Toggle ClampHW-CP-001-0001 - 50 X 139 X 106 mmShips next day	1
	M8 x 40mm Leveling Foot, with 40mm Diameter BaseHW-LF-001-0001 - 40 X 40 X 82 mmShips next day	11

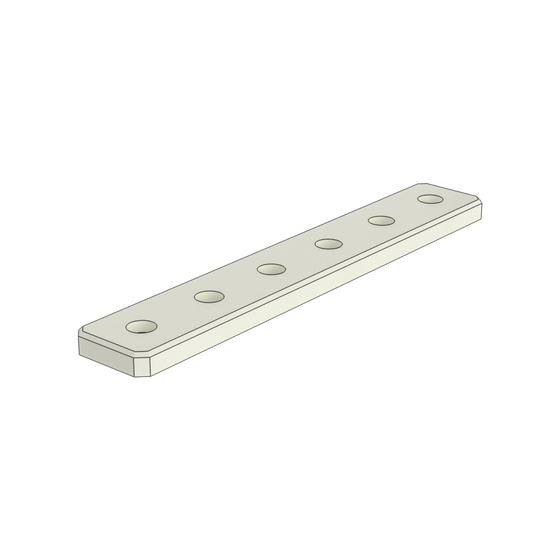

	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	12
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	1
	Zinc-Plated Steel Tow BarHW-TB-001-0003 - 620 X 90 X 50 mmShips in 3 weeks	1

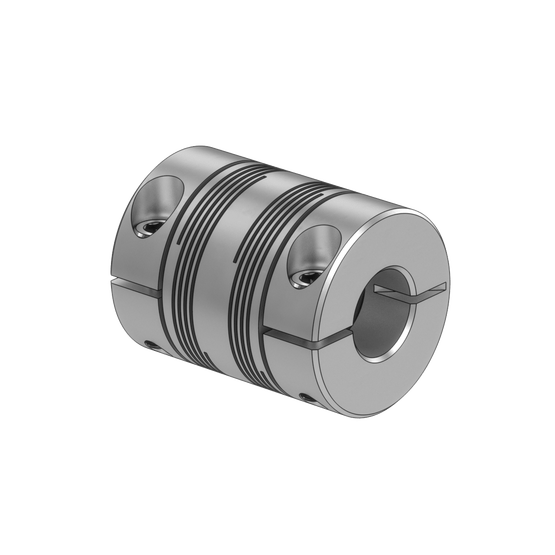

	Aluminum Helical Flexible Shaft CouplingMO-CP-001-0001 - 38 X 38 X 30 mmShips in 7 days	1

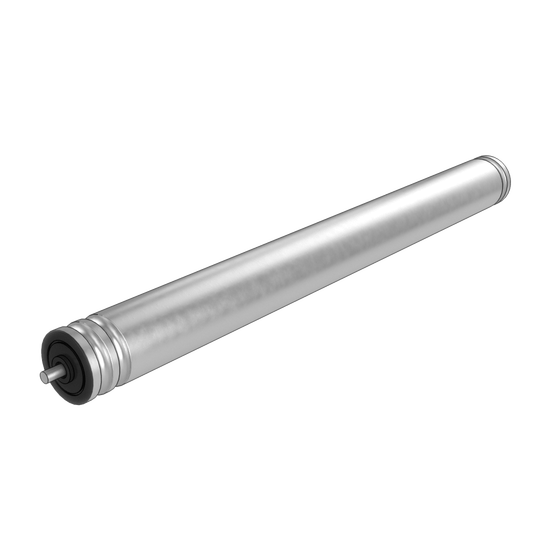

	Grooved Rollers, for Belt-driven ConveyorsMO-CV-001-0001 - 584 X 0 X 50 mmObsolete	1
	Large Stainless Steel Roller Wheel with Concentric BushingMO-LM-001-0015 - 43 X 0 X 51 mmShips in 3 weeks	1
	156mm NEMA 34 Stepper MotorMO-SM-001-0001 - 190 X 86 X 86 mmObsolete	1
	Fixed Caster Wheel, 120kg CapacityMO-WL-001-0001 - 95 X 68 X 130 mmObsolete	1
	45x45mm (45mm) Aluminum ExtrusionST-EXT-001-0045 - 45 X 45 X 45 mmShips next day	3
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips next day	4
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	4
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips next day	4
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips next day	4
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips next day	5
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips next day	7
	45x45mm (810mm) Aluminum ExtrusionST-EXT-001-0810 - 810 X 45 X 45 mmShips next day	1
	45x90mm (90mm) Aluminum ExtrusionST-EXT-002-0090 - 90 X 45 X 90 mmShips next day	3
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	6
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	8
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	1
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	20
	Aluminum Tube HolderST-SP-004-0001 - 45 X 135 X 45 mmObsolete	1
	M8 x 16mm Screw With T-NutHW-FN-001-0016 - 21 X 13 X 22 mmObsolete	5
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	155
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	5
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	153
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	3
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	2
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 2 X 16 X 16 mmShips next day	7
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmComing soon	5
