Technical Specifications
Design Number	AS-JF-959
Weight	187.12 kg
Dimensions (L x W x H)	9848 x 11451 x 781 mm
Application	Assembly
Assembly Time	10:20

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmShips in 7 days	5
	Fixed Caster Wheel, 120kg CapacityMO-WL-001-0001 - 95 X 68 X 130 mmObsolete	5
	Medium-Duty Swivel Caster Wheel with BrakeMO-WL-001-0002 - 157 X 68 X 130 mmObsolete	5

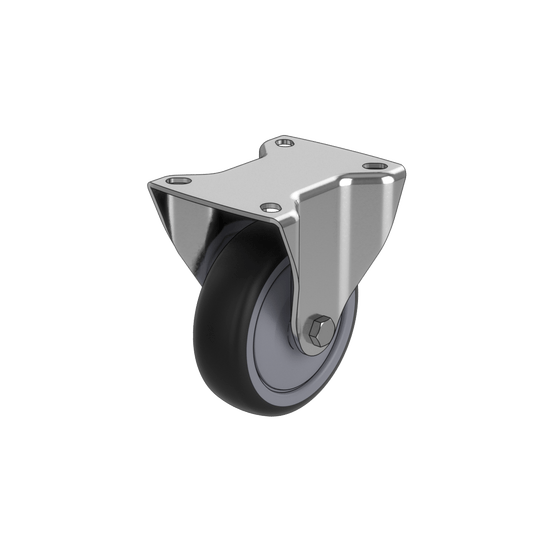

	Blickle Fixed Caster Wheel, 200kg CapacityMO-WL-001-0003 - 100 X 85 X 125 mmShips next day	5

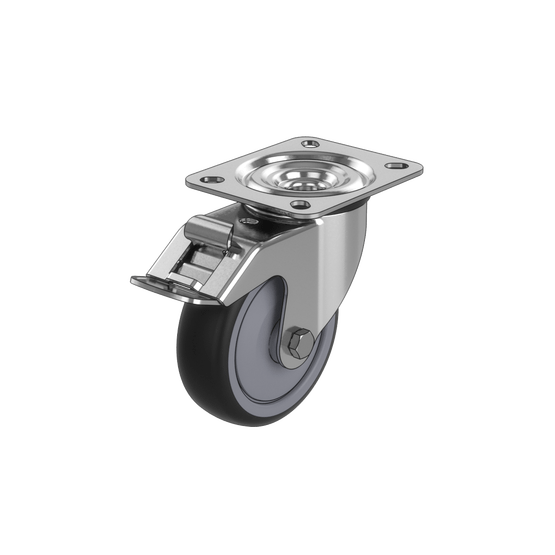

	Blickle Swivel Caster Wheel with Brake, 150kg CapacityMO-WL-001-0004 - 160 X 85 X 125 mmShips next day	5

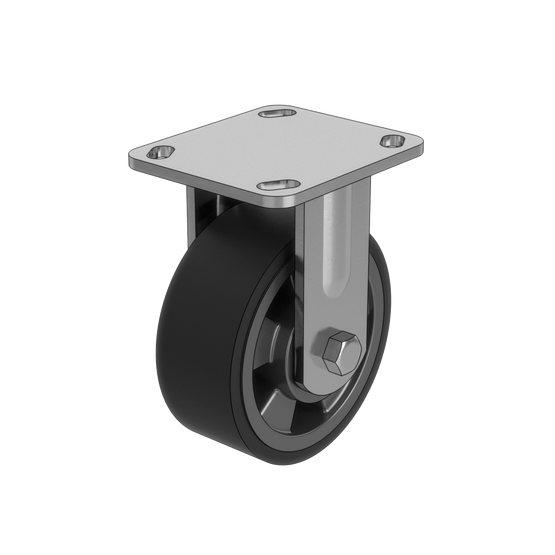

	Fixed Caster Wheel, 260kg CapacityMO-WL-002-0001 - 115 X 100 X 164 mmObsolete	5

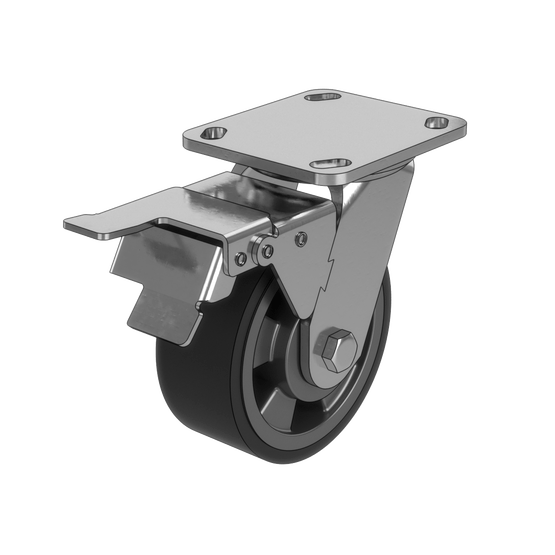

	Swivel Caster Wheel with Brake, 260kg CapacityMO-WL-002-0002 - 200 X 100 X 164 mmObsolete	5

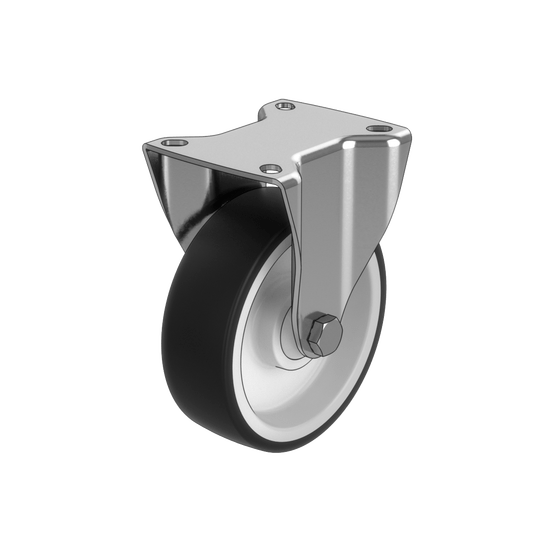

	Blickle Fixed Caster Wheel, 350kg CapacityMO-WL-002-0003 - 125 X 85 X 155 mmShips in 3 days	5

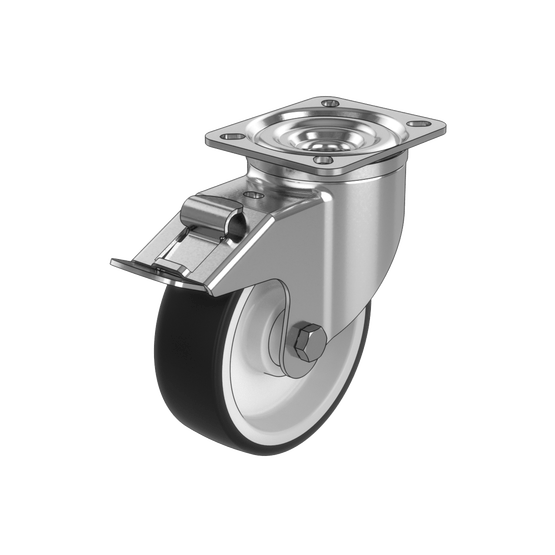

	Blickle Swivel Caster Wheel with Brake, 350kg CapacityMO-WL-002-0004 - 190 X 85 X 155 mmShips in 3 days	5

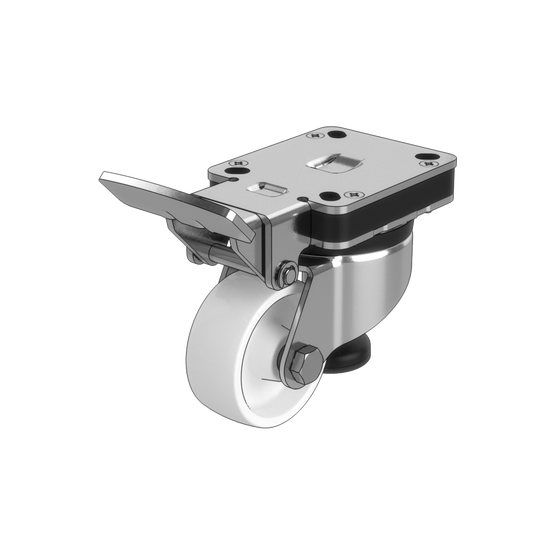

	Blickle Swivel Leveling Caster Wheel with Fixed Pedal, 200kg CapacityMO-WL-003-0001 - 175 X 85 X 118 mmShips next day	5

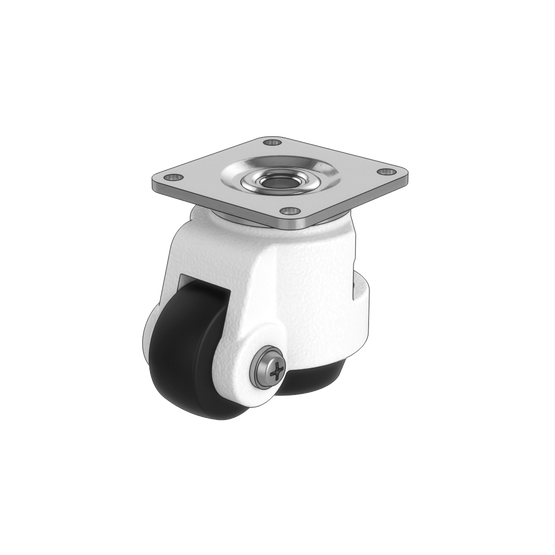

	Blickle Swivel Leveling Caster Wheel with Adjustment Wheel, 500kg CapacityMO-WL-003-0002 - 125 X 90 X 104 mmShips next day	5
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	62
	45x45mm (720mm) Aluminum ExtrusionST-EXT-001-0720 - 720 X 45 X 45 mmShips next day	5
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	5
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	5
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	5

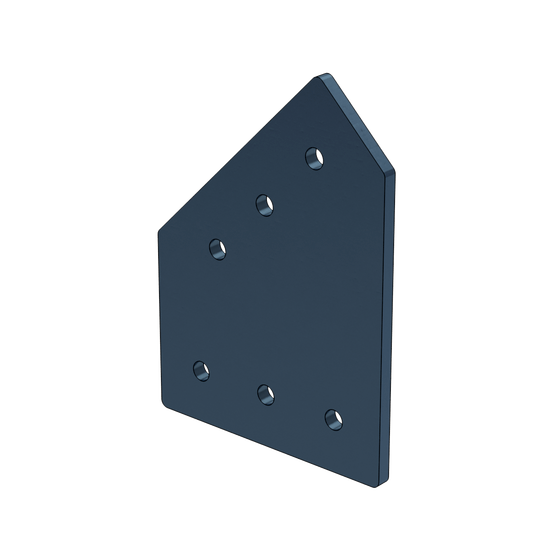

	45 Degree Joint Aluminum Assembly PlateST-GP-001-0012 - 6 X 110 X 153 mmShips next day	5
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	5
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.3949 m²Ships in 3 days	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.3949 m²Ships in 3 days	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.3949 m²Ships in 3 days	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.3949 m²Ships in 3 days	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.3949 m²Ships in 3 days	1
	Acrylic Panel, Clear 1/4'' [6.35mm]ST-PN-008-0001 - 0.3949 m²Ships in 3 days	1
	Acrylic Panel, Clear 1/4'' [6.35mm]ST-PN-008-0001 - 0.3949 m²Ships in 3 days	1
	Acrylic Panel, Clear 1/4'' [6.35mm]ST-PN-008-0001 - 0.3949 m²Ships in 3 days	1
	Acrylic Panel, Clear 1/4'' [6.35mm]ST-PN-008-0001 - 0.3949 m²Ships in 3 days	1
	Acrylic Panel, Clear 1/4'' [6.35mm]ST-PN-008-0001 - 0.3949 m²Ships in 3 days	1
	M8 x 16mm Screw With T-NutHW-FN-001-0016 - 21 X 13 X 22 mmObsolete	21
	M8 x 18mm Screw With T-NutHW-FN-001-0018 - 23 X 13 X 22 mmShips next day	42
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	258
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	103
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	21
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	114
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	21
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmComing soon	83
