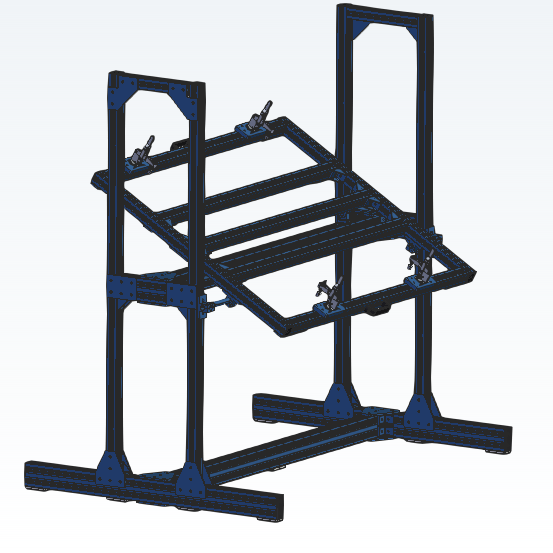

Rotating Table Assembly Jig

Community design

An assembly bed with an option to rotate and adjust the height as per the requirement of the user.

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-JF-229
Weight	58.06 kg
Dimensions (L x W x H)	1133 x 1632 x 1634 mm
Application	Assembly
Assembly Time	07:41

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	63mm Toggle ClampHW-CP-001-0001 - 50 X 139 X 106 mmShips next day	4
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	8
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001 - 12 X 45 X 90 mmObsolete	4
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmShips in 7 days	2
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	9
	45x45mm Hinge, 12mm Pin with BushingsMO-HG-002-0001 - 68 X 45 X 45 mmObsolete	2
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips next day	2
	45x45mm (990mm) Aluminum ExtrusionST-EXT-001-0990 - 990 X 45 X 45 mmShips next day	2
	45x45mm (1215mm) Aluminum ExtrusionST-EXT-001-1215 - 1215 X 45 X 45 mmShips next day	5
	45x45mm (1530mm) Aluminum ExtrusionST-EXT-001-1530 - 1530 X 45 X 45 mmShips next day	4
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	2
	45x90mm (1125mm) Aluminum ExtrusionST-EXT-002-1125 - 1125 X 45 X 90 mmShips next day	2
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	2
	20mm OD Round Aluminum Extrusion (180mm)ST-EXT-003-0180 - 180 X 0 X 20 mmObsolete	1
	20mm OD Round Aluminum Extrusion (225mm)ST-EXT-003-0225 - 225 X 0 X 20 mmObsolete	1
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	8
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips in 3 days	4
	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	4
	Tee Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0002 - 6 X 133 X 133 mmShips next day	18
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	32
	135x68mm Aluminum Mounting PlateST-SP-001-0001 - 11 X 135 X 68 mmObsolete	4
	Aluminum Tube HolderST-SP-004-0001 - 45 X 135 X 45 mmObsolete	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	266
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	17
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	252
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	9
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	3
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	5
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	3
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 2 X 16 X 16 mmShips next day	17
