Designing a simple workstation

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-WS-11420 v296
Weight	646.16 kg
Dimensions (L x W x H)	5202 x 6212 x 2792 mm
Application	Assembly
Assembly Time	32:01

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	Pneumatic Pressure Regulator, EuropeCA-AP-002-0005 - 71 X 84 X 116 mmShips next day	1
	European Industrial Power StripCE-CA-036-0002 - 482 X 44 X 54 mmShips next day	1
	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mmShips next day	4
	VFD for Dorner3200 AC Motor, Canada and USACE-MD-007-1001 - 0 X 0 X 0 mmComing soon	2
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	3
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips next day	2
	125mm Toggle ClampHW-CP-001-0002 - 50 X 168 X 139 mmShips in 14 days	1
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips next day	1
	Spring-Loaded Grab CatchHW-LT-002-0001__2 - 90 X 90 X 19 mmShips next day	2
	Collar for 20mm Round ExtrusionHW-SC-001-0003 - 35 X 35 X 8 mmShips next day	1

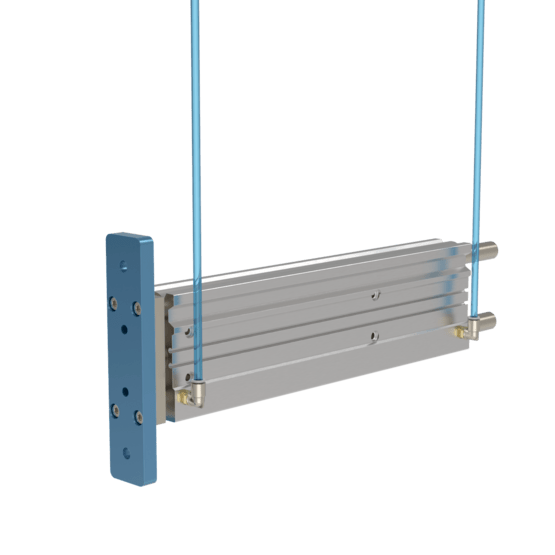

	Guided Double-Acting Pneumatic Actuator, 300mm StrokeMO-AR-002-0300 - 421 X 93 X 60 mmShips next day	2
	20mm Pillow Bearing (Self Aligning)MO-BR-007-0001 - 88 X 48 X 25 mmShips next day	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	4

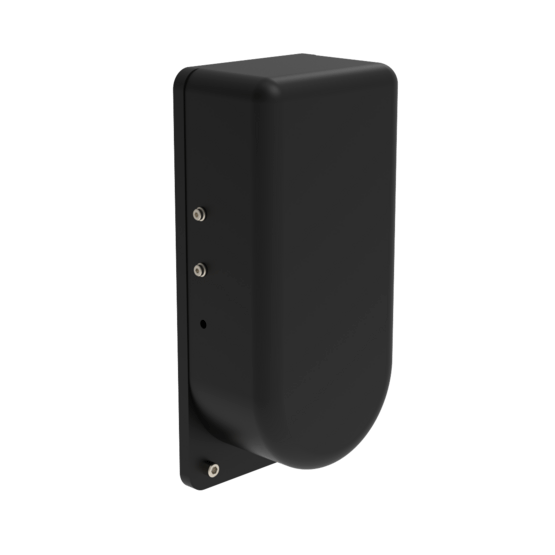

	Motor Mount for Dorner 3200MO-CV-023-0001 - 273 X 123 X 80 mmShips in 16 days	1

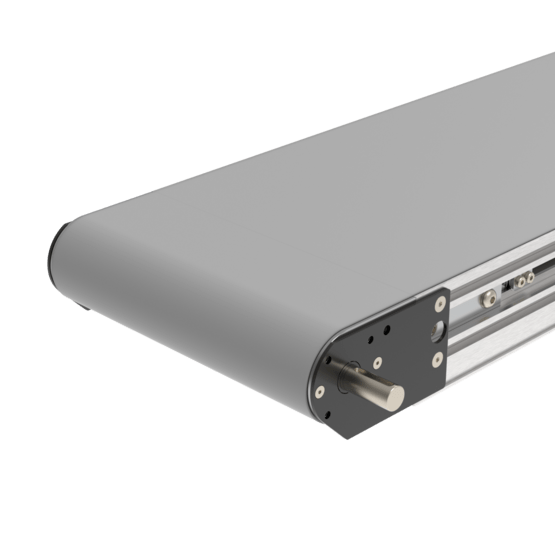

	Dorner 3200 Belt Conveyor, 305mm x 945mmMO-CV-024-0945 - 945 X 363 X 96 mmShips in 16 days	1

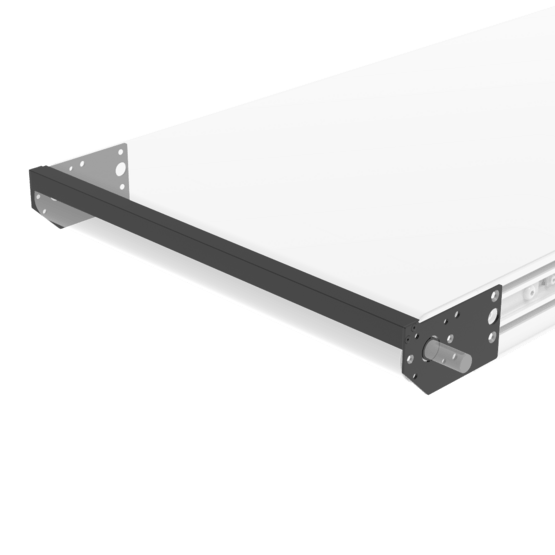

	Transfer Plate for Dorner 3200 (Drive Tail), 610mmMO-CV-025-0001 - 158 X 621 X 92 mmShips next day	1
	GF Nylon Eccentric RollerMO-LM-001-0027 - 55 X 55 X 52 mmShips in 7 weeks	2
	GF Nylon Concentric RollerMO-LM-001-0028 - 52 X 52 X 52 mmShips in 7 weeks	2
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 17 days	6
	133x110.5 mm Gantry PlateMO-LM-001-0033 - 133 X 110 X 12 mmShips next day	1
	Left Timing Belt Sensor BumperMO-LM-015-0001__2 - 102 X 19 X 30 mmShips next day	12
	Timing Belt Actuator (3330mm)MO-LM-016-3330__2 - 3510 X 67 X 120 mmShips next day	2
	Right Rack & Pinion End StopMO-LM-019-0007 - 45 X 74 X 23 mmShips in 7 weeks	1

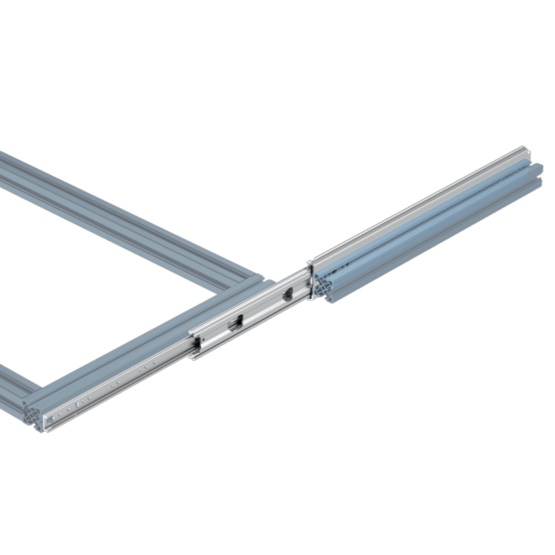

	Telescopic Slide, Heavy Duty (600mm)MO-LM-029-0600 - 609 X 76 X 19 mmShips in 6 weeks	2
	Enclosed Lead Screw Actuator, 855mm LengthMO-LM-047-0855 - 997 X 270 X 112 mmShips next day	1
	Rotary Actuator V2 with Sensor ProvisionMO-RM-002-0001__3 - 223 X 223 X 113 mmComing soon	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mmShips in 2 days	7

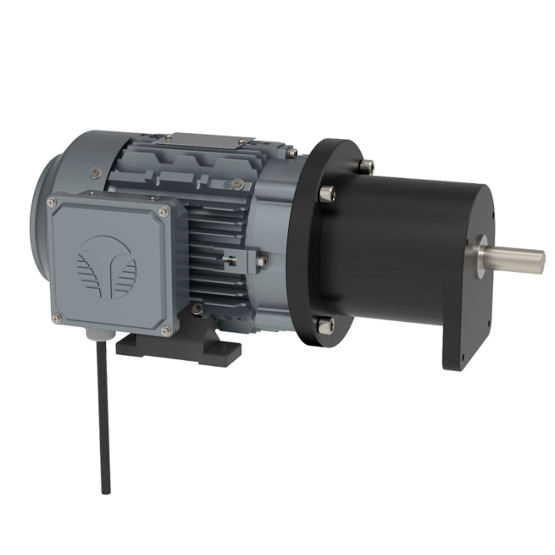

	1/2 HP AC Motor and 8:1 Gearbox, for Dorner 3200MO-SM-022-0005 - 419 X 215 X 170 mmShips next day	1
	Blickle Fixed Caster Wheel, 200kg CapacityMO-WL-001-0003 - 100 X 85 X 125 mmShips next day	4

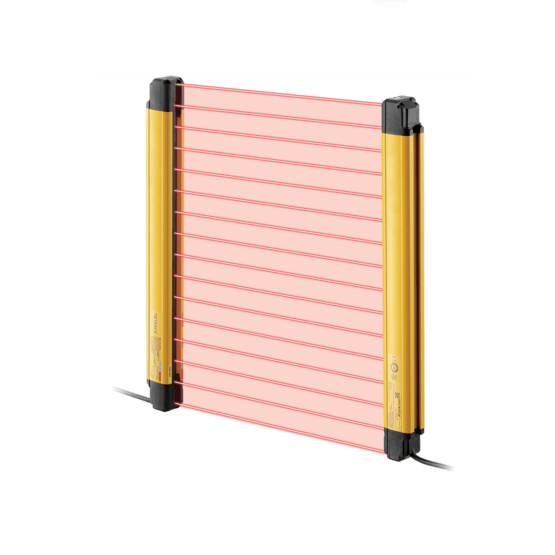

	Keyence Light Curtains - 745mmPR-KE-001-0003 - 720 X 32 X 38 mmShips next day	1

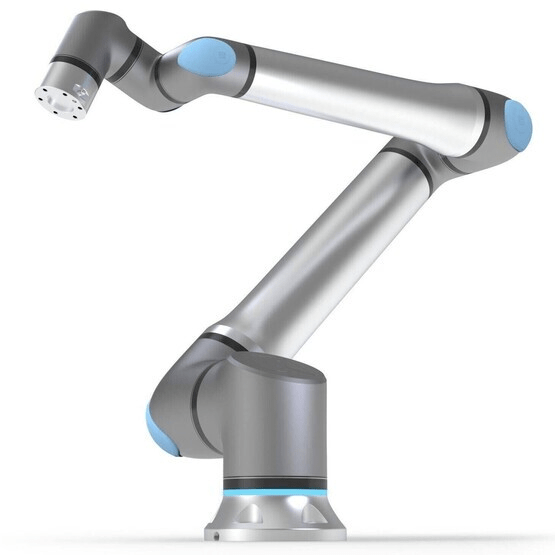

	Universal Robots UR20 - PolyScope 5PR-UR-001-0575 - 1000 X 1000 X 500 mmShips next day	2

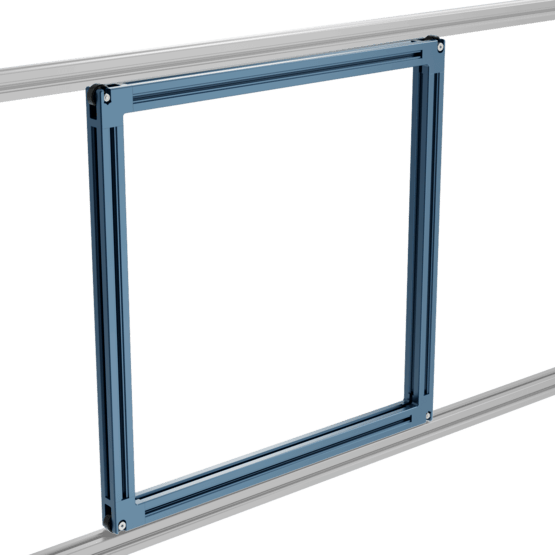

	Sliding Door Frame Connector KitST-DR-002-0000 - 73 X 180 X 73 mmShips in 6 days	1
	45x45mm (45mm) Aluminum ExtrusionST-EXT-001-0045 - 45 X 45 X 45 mmShips next day	4
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	1
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips next day	1
	45x45mm (270mm) Aluminum ExtrusionST-EXT-001-0270 - 270 X 45 X 45 mmShips next day	4
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips next day	4
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	1
	45x45mm (765mm) Aluminum ExtrusionST-EXT-001-0765 - 765 X 45 X 45 mmShips next day	6
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips next day	1
	45x45mm (1035mm) Aluminum ExtrusionST-EXT-001-1035 - 1035 X 45 X 45 mmShips next day	2
	45x45mm (1125mm) Aluminum ExtrusionST-EXT-001-1125 - 1125 X 45 X 45 mmShips next day	6
	45x45mm (1440mm) Aluminum ExtrusionST-EXT-001-1440 - 1440 X 45 X 45 mmShips next day	4
	45x45mm (1485mm) Aluminum ExtrusionST-EXT-001-1485 - 1485 X 45 X 45 mmShips next day	8
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	1
	45x90mm (990mm) Aluminum ExtrusionST-EXT-002-0990 - 990 X 45 X 90 mmShips next day	8
	22.5x22.5mm (945mm) Aluminum ExtrusionST-EXT-006-0945 - 945 X 22 X 22 mmShips next day	2

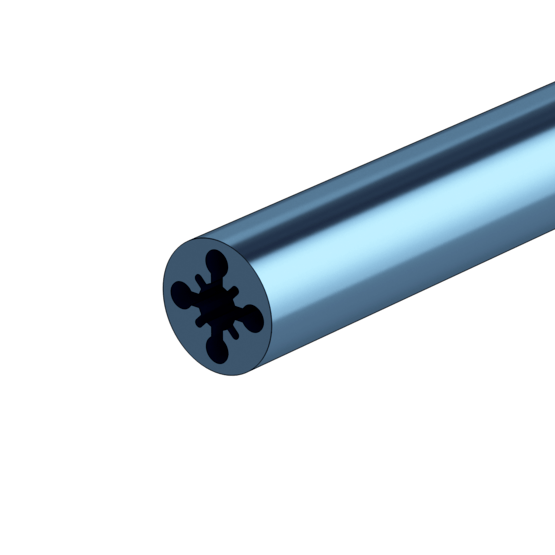

	20mm OD Round (45mm) Aluminum ExtrusionST-EXT-008-0045 - 45 X 20 X 20 mmShips next day	1
	180x22.5mm (450mm) Table Top ExtrusionST-EXT-009-0450 - 450 X 180 X 22 mmShips next day	2
	247.5x247.5mm (900mm) Aluminum ExtrusionST-EXT-011-0900 - 900 X 247 X 247 mmShips next day	1
	247.5x247.5mm (1845mm) Aluminum ExtrusionST-EXT-011-1845 - 1845 X 247 X 247 mmShips in 4 days	1
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	1
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	1
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips in 9 days	10
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	1
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	1
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	1
	120 Degree Angled L-PlateST-GP-001-0024 - 237 X 158 X 6 mmObsolete	1
	135 Degree Angled L-PlateST-GP-001-0025 - 256 X 156 X 6 mmObsolete	1

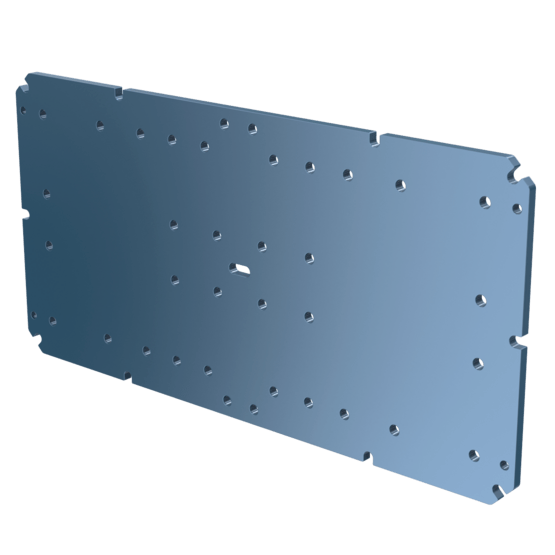

	247.5x247.5mm Extrusion Assembly PlateST-GP-001-0027 - 245 X 8 X 493 mmShips next day	1
	45mm x 45mm In-line Mounting Block for Right Angle ConnectionsST-GP-002-0001 - 44 X 44 X 26 mmObsolete	1
	45mm x 90mm In-Line Mounting Block for Right Angle Connections ST-GP-002-0004 - 90 X 45 X 22 mmShips next day	1
	90mm x 90mm In-Line Mounting Block for Right Angle ConnectionsST-GP-002-0005 - 90 X 90 X 22 mmShips next day	1
	90mm x 90mm Aluminum GussetST-GP-003-0004 - 88 X 88 X 88 mmShips next day	1

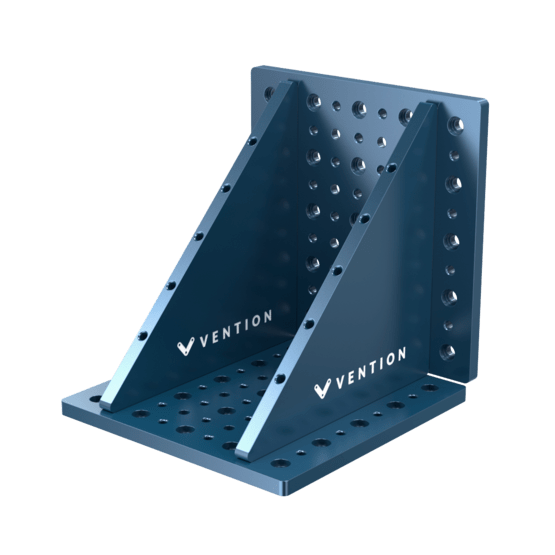

	247.5x247.5mm Extrusion Gusset AssemblyST-GP-003-0007 - 235 X 223 X 235 mmShips next day	1
	Slotted 45mm x 90mm Aluminum GussetST-GP-003-0008 - 42 X 44 X 89 mmShips next day	1
	2-Way Extrusion End Connector with Panel CutoutsST-GP-004-0003 - 49 X 49 X 45 mmObsolete	1
	Tee Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0002 - 6 X 133 X 133 mmShips next day	1
	67.5mm x 67.5mm Aluminum Gusset with LocatorsST-HP-003-0007 - 66 X 66 X 42 mmShips next day	10
	UR Control Box Mounting BracketST-RB-002-0001__2 - 12 X 450 X 130 mmShips next day	1
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips in 7 weeks	1
	OnRobot Tool Changer (Robot Side)ST-RB-028-0004 - 84 X 84 X 14 mmShips next day	1
	OnRobot RG6 2-finger Underactuated GripperST-RB-028-0007 - 262 X 212 X 42 mmShips in 12 days	1
	Cobot Pedestal with Reinforced Base, 1226 mmST-RB-033-1226 - 405 X 405 X 1226 mmShips next day	1

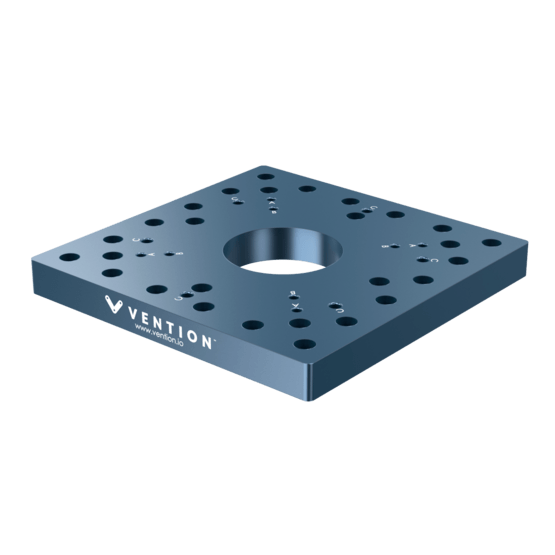

	Multi-Robot Mounting Plate 270 X 270 mmST-RB-100-0270 - 268 X 268 X 27 mmShips in 7 weeks	1

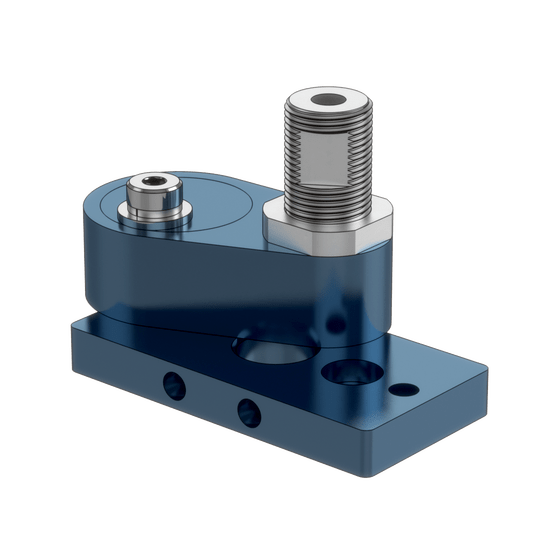

	Eccentric Locator for Dimensional JigST-SP-007-0001 - 100 X 45 X 75 mmShips in 16 days	1

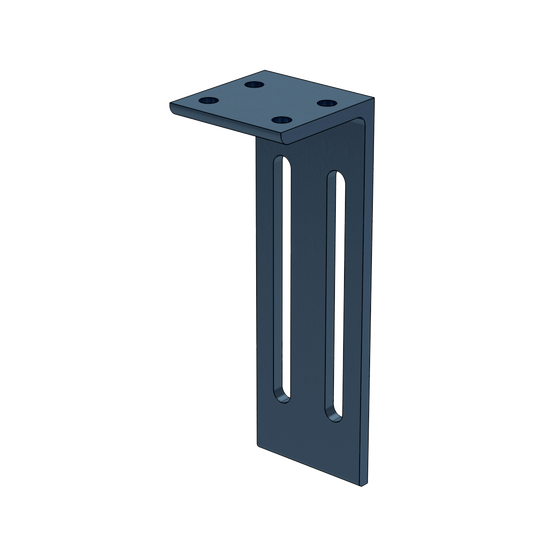

	Mounting Bracket for Toggle ClampST-SP-007-0007 - 50 X 50 X 150 mmShips next day	1
	Premium Caster Wheel Mounting PlateST-SP-010-0001 - 100 X 90 X 11 mmShips next day	4

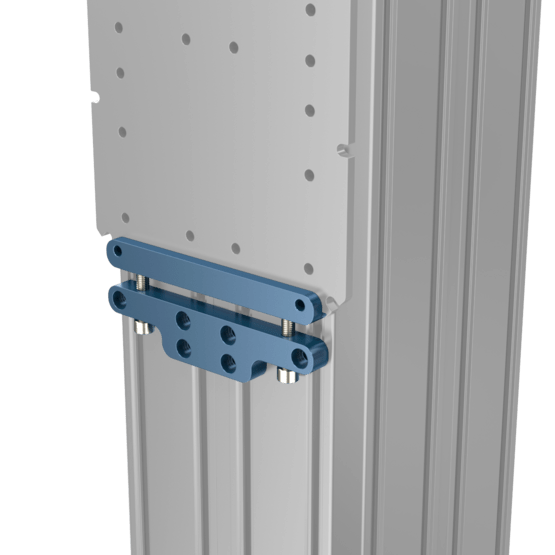

	Large Extrusion Leveling FixtureST-SP-016-0001 - 205 X 17 X 67 mmShips next day	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003__2 - 1.0692 m²Ships in 3 days	1
	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003__2 - 0.0848 m²Ships in 3 days	1

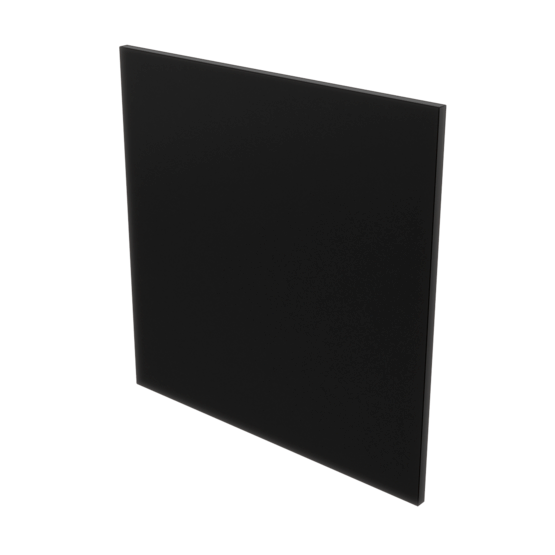

	Anti-Static UHMW Polyethylene Panel, Black 1/4" [6.35mm]ST-PN-021-0001 - 0.6197 m²Ships in 3 days	1
	20405K11_Heavy Duty Fixed-Blade Wall LouverIMP-37787_39135 - 45 X 350 X 350 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	411

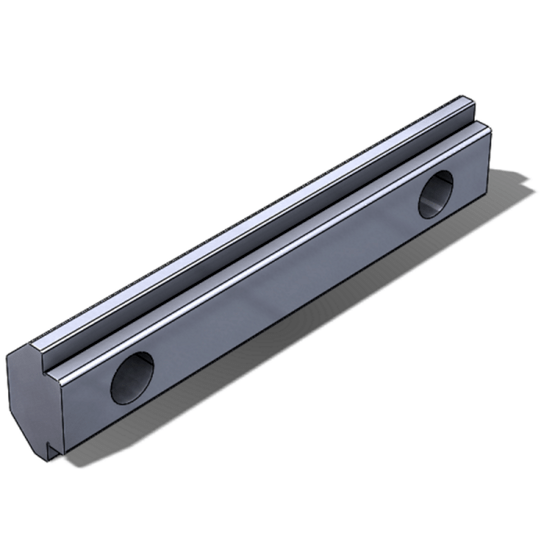

	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	10
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	16
	Butt-Joint Extrusion ConnectorHW-FN-002-0005 - 148 X 13 X 7 mmShips next day	6
	M5 Drop-in Spring Loaded T-NutHW-FN-002-0006 - 22 X 13 X 7 mmShips next day	17
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	3
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	5
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	34
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	28
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	246
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	47
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	9
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	41
	M8 x 35mm Screw, Partially ThreadedHW-FN-003-0035 - 35 X 13 X 40 mmShips next day	16
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	17
	M6 x 1.0 x 14mm, Low Profile Socket HeadHW-FN-005-0014 - 18 X 10 X 10 mmShips next day	9
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	11
	M5-0.8 X 16mm ScrewHW-FN-008-0016 - 19 X 8 X 8 mmShips next day	9
	M8 1.25 x 16mm Flat Head ScrewHW-FN-015-0016 - 16 X 16 X 16 mmShips next day	19
	M10 x 1.5 x 35mm Standard Hex Socket Head, Class 12.9HW-FN-019-0035 - 45 X 16 X 16 mmShips next day	13
	M5-0.8 x 8mm Ball Point Set ScrewHW-FN-022-1008 - 5 X 5 X 8 mmComing soon	2
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 2 X 16 X 16 mmShips next day	23
	M6 Washer with 12mm Outside DiameterHW-WS-005-0001 - 1 X 12 X 12 mmShips next day	3

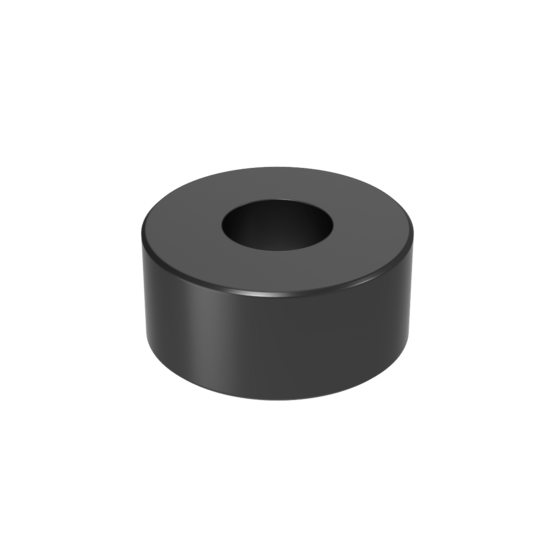

	Spacer for Heavy Duty Telescopic SlideMO-LM-022-0001 - 13 X 13 X 5 mmShips next day	8
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips next day	2
	Butt-Joint Extrusion ConnectorHW-FN-002-0005 - 148 X 13 X 7 mmShips next day	1
	90 Degree Inside Corner Bracket for 22.5 x 22.5 mm ExtrusionsHW-FN-006-0001__2 - 13 X 36 X 36 mmShips next day	1
