PotatoShack

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-WS-9388
Weight	283.43 kg
Dimensions (L x W x H)	1230 x 1164 x 1676 mm
Application	Assembly
Assembly Time	16:48

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mm	2

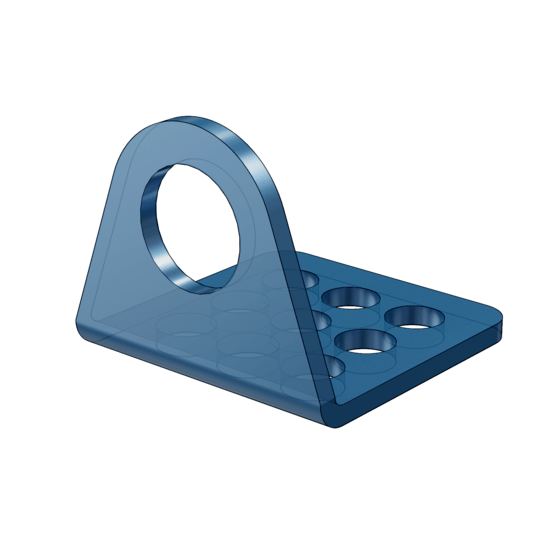

	M18 Threaded Sensor BracketCE-HW-001-0003 - 43 X 42 X 37 mmShips in 3 weeks	2
	Tower Light v2CE-LI-001-0000__2 - 39 X 55 X 353 mmShips in 11 days	1
	Smart Pushbutton ModuleCE-MD-004-0000 - 133 X 88 X 46 mmObsolete	1
	Power Switch ModuleCE-MD-005-0000 - 178 X 133 X 66 mmShips next day	1
	Momentary Pushbutton ModuleCE-MD-014-0001 - 88 X 60 X 135 mmShips in 10 days	1
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	2
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips in 3 weeks	4

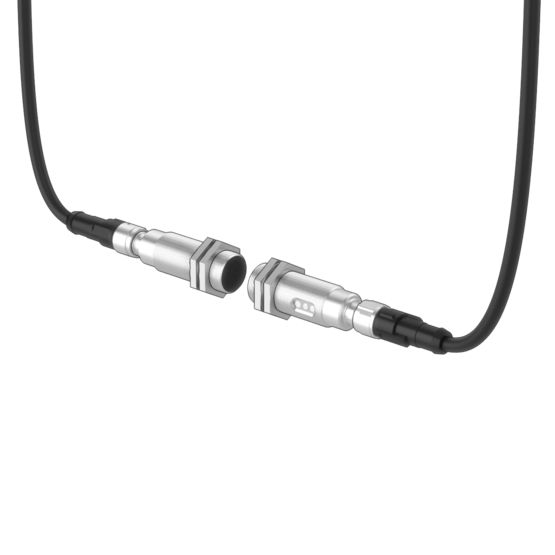

	M18 Through-Beam (NPN Receiver & Transmitter) Photo-Electric Sensor (SN = 6000mm)CE-SN-006-0001__2 - 110 X 110 X 30 mmShips in 6 weeks	1
	Compact Double-Acting Pneumatic Actuator, 100mm StrokeMO-AR-001-0100 - 223 X 45 X 68 mmShips next day	1
	Compact Double-Acting Pneumatic Actuator, 300mm StrokeMO-AR-001-0300 - 436 X 45 X 68 mmShips next day	1
	151mm x 585mm Dorner 2200 Belt ConveyorMO-CV-004-0585 - 585 X 214 X 47 mmShips in 18 days	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	4
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips next day	1
	Motor Mount for Dorner 3200MO-CV-023-0001 - 273 X 123 X 80 mmShips in 3 days	1
	Dorner 3200 Belt Conveyor, 305mm x 945mmMO-CV-024-0945 - 945 X 363 X 96 mmShips in 3 weeks	1

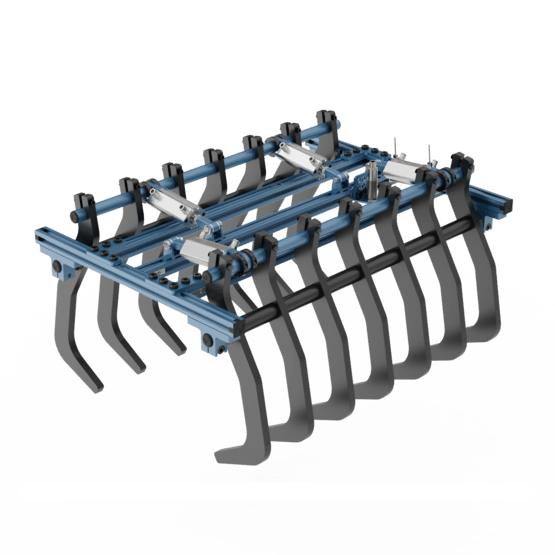

	Bag GripperMO-GR-002-0630 - 630 X 494 X 348 mmComing soon	1
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 3 days	1
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips in 3 days	7
	16mm Shaft for Linear Bearings (585mm)MO-LM-014-0585__2 - 585 X 35 X 32 mmComing soon	2
	Left Timing Belt Sensor BumperMO-LM-015-0001__2 - 102 X 19 X 30 mmShips next day	2
	Timing Belt Actuator (585mm)MO-LM-016-0585__2 - 765 X 67 X 120 mmShips in 3 weeks	1
	Enclosed Ball Screw Actuator, 360mm LengthMO-LM-039-0360 - 502 X 270 X 112 mmShips next day	1
	Telescopic Lift Column for MMv2MO-LM-050-0830__2 - 315 X 315 X 830 mm	1
	Rotary Actuator V2 with Sensor ProvisionMO-RM-002-0001__3 - 223 X 223 X 113 mmComing soon	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mm	3
	68mm NEMA 34 Stepper Servo MotorMO-SM-013-0000 - 168 X 86 X 112 mm	2
	1/2 HP AC Motor and 8:1 Gearbox, for Dorner 3200MO-SM-022-0005 - 419 X 215 X 170 mmShips next day	1

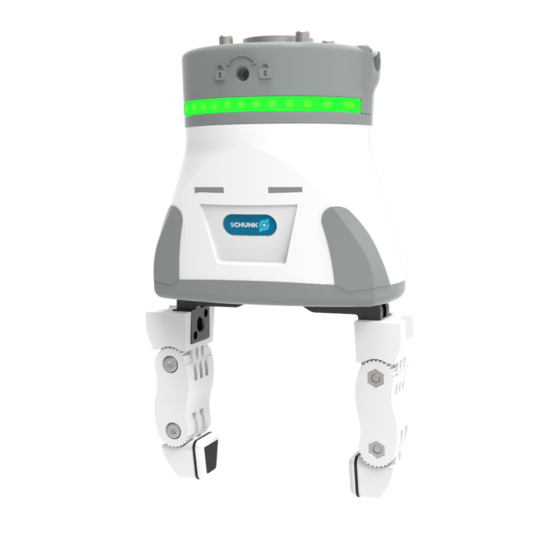

	Electric collaborative flexible gripperPR-SK-001-0096 - 205 X 122 X 87 mmShips in 5 days	1

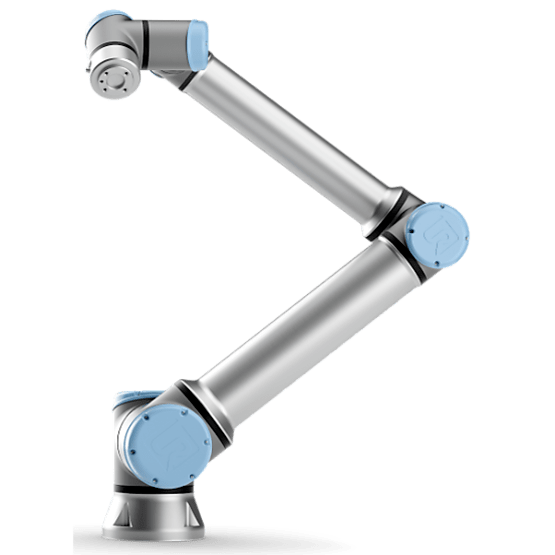

	Universal Robots UR10e Collaborative Robot ArmPR-UR-010-0000 - 915 X 760 X 485 mmShips next day	1
	45x45mm (90mm) Aluminum ExtrusionST-EXT-001-0090 - 90 X 45 X 45 mmShips next day	2
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	1
	45x45mm (225mm) Aluminum ExtrusionST-EXT-001-0225 - 225 X 45 X 45 mmShips next day	11
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips next day	1
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips next day	2
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	7
	45x45mm (675mm) Aluminum ExtrusionST-EXT-001-0675 - 675 X 45 X 45 mmShips next day	2
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	4
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips in 3 days	16
	Tee Joint Aluminum Assembly Plate, for 45 x 45mm ExtrusionST-GP-001-0015 - 6 X 133 X 133 mmShips next day	1
	1x5 Hole Aluminum Assembly PlateST-GP-001-0020 - 223 X 43 X 6 mmShips next day	1
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	2
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	9
	UR10e/UR16e and FANUC CRX-10iA Mounting PlateST-RB-001-0008 - 225 X 225 X 22 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	213
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	5
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	3
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	19
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	17
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	5
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	165
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	9
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	9
	M8 x 1.25 x 25 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1025 - 33 X 13 X 13 mmShips in 11 days	5
	M8 x 1.25 x 30 mm Standard Hex Socket Head, Class 12.9HW-FN-003-1030 - 38 X 13 X 13 mmShips in 10 days	5
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	9
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	3
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	15
	M8 X1.25 Zinc Plated Hex Nut With Locking PatchHW-FN-031-0001 - 13 X 13 X 8 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 2 X 16 X 16 mmShips next day	9
