Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-JF-4837 v9
Weight	147.12 kg
Dimensions (L x W x H)	2621 x 3154 x 1764 mm
Application	Assembly
Assembly Time	06:20

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mmShips next day	1
	Universal M18 Sensor BracketCE-HW-001-0002 - 74 X 49 X 38 mmShips next day	2
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	4
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips next day	2
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 17 days	1
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmShips in 7 weeks	1
	Ball Screw Linear Drive, 10mm lead (855mm)MO-LM-003-0855 - 962 X 225 X 90 mmShips in 7 weeks	1
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips next day	8
	16mm Shaft for Linear Bearings (855mm)MO-LM-014-0855 - 855 X 31 X 33 mmShips next day	4

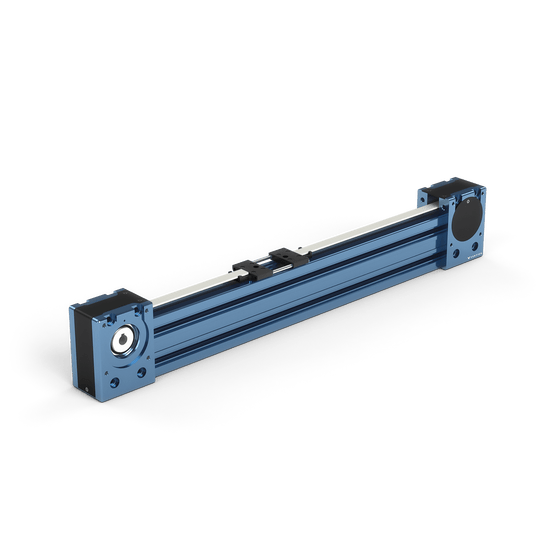

	Timing Belt Actuator (765mm)MO-LM-016-0765__2 - 945 X 67 X 120 mmShips next day	1
	Rack and Pinion, Housing and Pinion AssemblyMO-LM-019-0001 - 130 X 223 X 87 mmShips in 7 weeks	1
	Left Rack & Pinion End StopMO-LM-019-0005__2 - 45 X 74 X 23 mmShips in 7 weeks	1
	Right Rack & Pinion End StopMO-LM-019-0007 - 45 X 74 X 23 mmShips in 7 weeks	1
	Gear Rack, 810mmMO-LM-020-0810 - 823 X 10 X 15 mmShips in 7 weeks	1
	Enclosed Timing Belt Actuator, 585mm LengthMO-LM-026-0585 - 830 X 180 X 112 mmObsolete	1
	Enclosed Timing Belt Actuator, 855mm LengthMO-LM-026-0855 - 1100 X 180 X 112 mmObsolete	1
	Heavy Duty Enclosed Timing Belt Actuator, 1530mm LengthMO-LM-027-1530 - 1777 X 270 X 112 mmObsolete	1
	156mm NEMA 34 Stepper MotorMO-SM-001-0001 - 190 X 86 X 86 mmObsolete	6
	45x90mm (855mm) Aluminum ExtrusionST-EXT-002-0855 - 855 X 45 X 90 mmShips next day	2
	45x90mm (900mm) Aluminum ExtrusionST-EXT-002-0900 - 900 X 45 X 90 mmShips next day	1
	M8 x 20mm Screw With T-NutHW-FN-001-0020 - 25 X 13 X 22 mmObsolete	9
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	93
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	5
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	26
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	5
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	5
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	5
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	47
	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	3
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	9
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	9
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	9
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 23 X 8 X 8 mmShips next day	5
	M8-1.25 x 6mm Set ScrewHW-FN-014-0001 - 6 X 8 X 8 mmShips next day	2
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	26
