MM_DESIGN: SAVE AS

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-JF-2176
Weight	126.97 kg
Dimensions (L x W x H)	1033 x 979 x 1258 mm
Application	Assembly
Assembly Time	16:15

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1

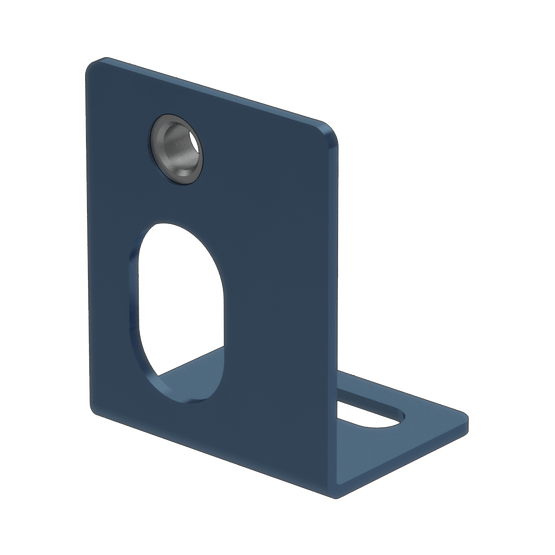

	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mmObsolete	6

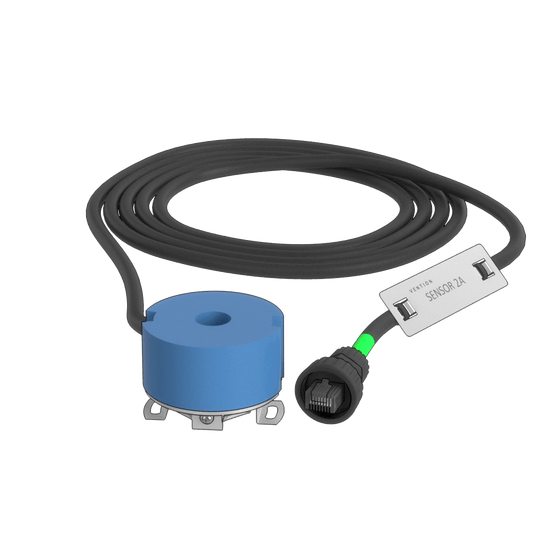

	Hollow Shaft Optical Rotary EncoderCE-SN-002-0001 - 48 X 48 X 34 mmObsolete	3
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	5
	MachineMotion 1 PendantCE-TP-003-0001 - 320 X 200 X 73 mmObsolete	1
	Rubber BumperHW-BP-001-0002 - 50 X 80 X 43 mmShips next day	3
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips in 3 days	3
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmShips in 7 days	2
	M8 x 40mm Leveling Foot, with 80mm Diameter PadHW-LF-001-0002 - 80 X 80 X 82 mmShips in 3 days	4

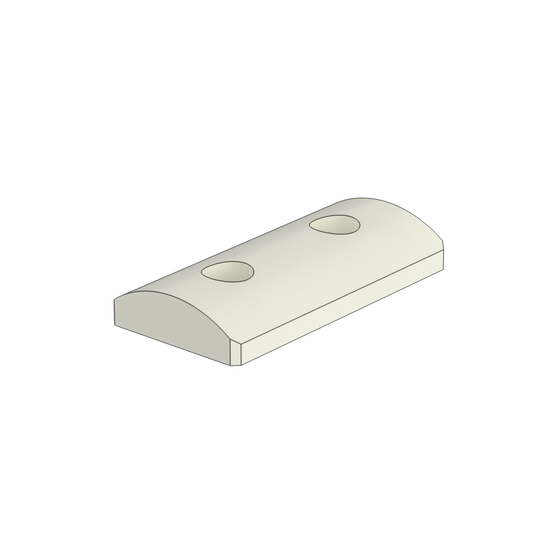

	45x90mm Rest Pad, with Cylindrical ProfileHW-RP-002-0004 - 15 X 90 X 45 mmShips next day	3

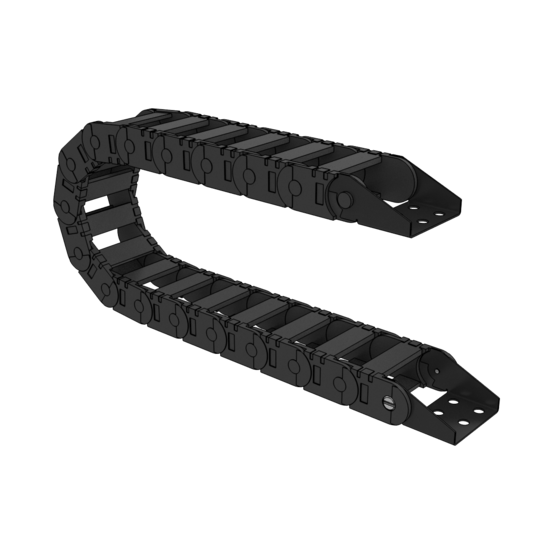

	71mm Wide Cable Drag Chain (782mm)MO-DC-002-0765 - 879 X 74 X 35 mmShips next day	1
	225x225 Gantry PlateMO-LM-001-0031 - 225 X 225 X 12 mmShips next day	4
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmShips in 3 weeks	4
	Ball Screw Linear Drive, 10mm lead (585mm)MO-LM-003-0585 - 692 X 225 X 90 mm	4
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips in 3 days	16
	16mm Shaft for Linear Bearings (585mm)MO-LM-014-0585 - 585 X 31 X 33 mmShips next day	8
	65mm NEMA 34 Stepper MotorMO-SM-003-0001 - 133 X 86 X 86 mm	4
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips next day	3
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips next day	1
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	1
	45x90mm (405mm) Aluminum ExtrusionST-EXT-002-0405 - 405 X 45 X 90 mmShips next day	4
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	8
	45x90mm (720mm) Aluminum ExtrusionST-EXT-002-0720 - 720 X 45 X 90 mmShips next day	2
	45x90mm (990mm) Aluminum ExtrusionST-EXT-002-0990 - 990 X 45 X 90 mmShips next day	3
	90x90mm (675mm) Aluminum ExtrusionST-EXT-005-0675 - 675 X 90 X 90 mmShips next day	2
	90x90mm (720mm) Aluminum ExtrusionST-EXT-005-0720 - 720 X 90 X 90 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	4
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	12
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	4
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	11
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips in 3 days	4
	90 Degree Joint Aluminum Assembly Plate, for 45x45mm ExtrusionsST-GP-001-0009 - 6 X 133 X 133 mmShips in 3 days	6
	45mm x 45mm In-line Mounting Block for Right Angle ConnectionsST-GP-002-0001 - 44 X 44 X 26 mmObsolete	3
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	6
	UR Teach Pendant Mounting BracketST-RB-002-0003 - 30 X 223 X 100 mmShips next day	1

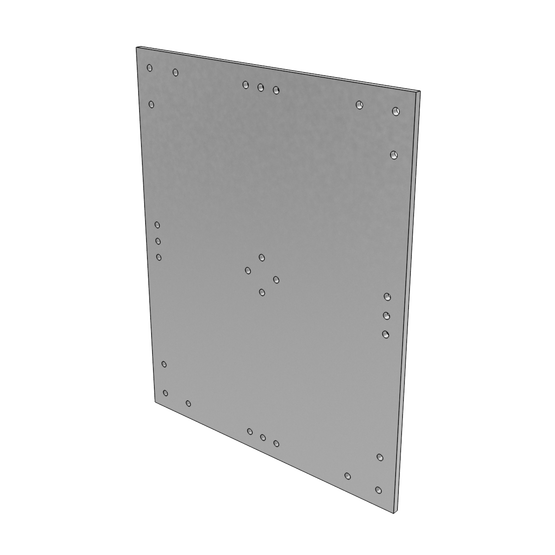

	495x405mm Machinable Blank PlateST-SP-008-0001 - 405 X 495 X 8 mmShips in 3 weeks	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	432
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	36
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	338
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	21
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	37
	M8 x 35mm Screw, Partially ThreadedHW-FN-003-0035 - 35 X 13 X 40 mmShips next day	4
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	34
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 23 X 8 X 8 mmShips next day	17
	M3 0.5 x 3mm ScrewHW-FN-009-0003 - 0 X 0 X 3 mmShips next day	7
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	51
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 2 X 16 X 16 mmShips next day	7
