Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-5631
Weight	97.60 kg
Dimensions (L x W x H)	2348 x 2540 x 593 mm
Application	Other Equipment
Assembly Time	05:24

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty

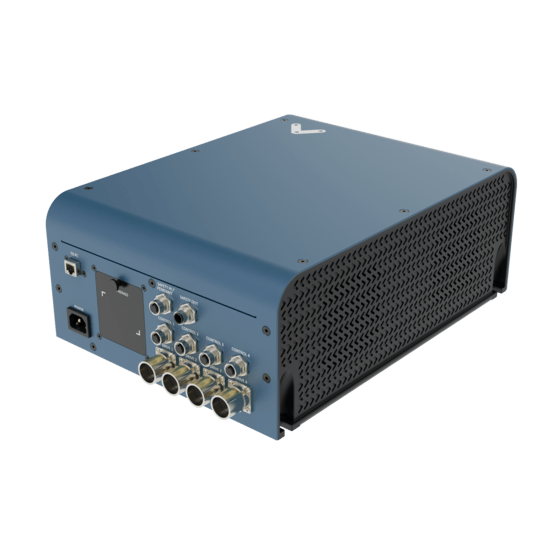

	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mm	1
	Universal M18 Sensor BracketCE-HW-001-0002 - 74 X 49 X 38 mmShips next day	2
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	2
	Flush Inductive Proximity SensorCE-SN-004-0003 - 189 X 158 X 32 mmShips in 3 weeks	2
	Pneumatic and Electric Actuator Push BlockHW-CY-002-0001 - 25 X 88 X 33 mmShips next day	1
	Compact Double-Acting Pneumatic Actuator, 200mm StrokeMO-AR-001-0200 - 336 X 45 X 68 mmShips next day	1
	Motor Mounting Block for Belt-Driven ConveyorMO-CV-003-0001 - 90 X 97 X 89 mmShips in 3 weeks	1
	305mm x 945mm Dorner 2200 Belt ConveyorMO-CV-005-0945 - 945 X 366 X 47 mmShips in 18 days	1
	Belt Conveyor Mounting BracketMO-CV-008-0001 - 90 X 53 X 44 mmShips next day	4
	Motor Mount for Dorner Belt ConveyorsMO-CV-009-0001 - 233 X 155 X 88 mmShips next day	1
	855mm Conveyor Turntable Caster Roller PlateMO-CV-020-0001 - 405 X 405 X 9 mmComing soon	1
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 3 days	1
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmShips in 3 weeks	1
	Ball Screw Linear Drive, 10mm lead (855mm)MO-LM-003-0855 - 962 X 225 X 90 mm	1
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips in 3 days	4
	16mm Shaft for Linear Bearings (855mm)MO-LM-014-0855 - 855 X 31 X 33 mmShips next day	2
	Heavy Duty Enclosed Timing Belt Actuator, 855mm LengthMO-LM-027-0855 - 1102 X 270 X 112 mmObsolete	1
	Rotary Actuator V2MO-RM-002-0001__2 - 223 X 223 X 113 mmObsolete	1
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mm	3
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips next day	1
	45x90mm (855mm) Aluminum ExtrusionST-EXT-002-0855 - 855 X 45 X 90 mmShips next day	2
	Machine Tending Drawer OpenerST-RB-020-0004 - 63 X 5 X 21 mmComing soon	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	89
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	5
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	3
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	9
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	11
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	17
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	6
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	42

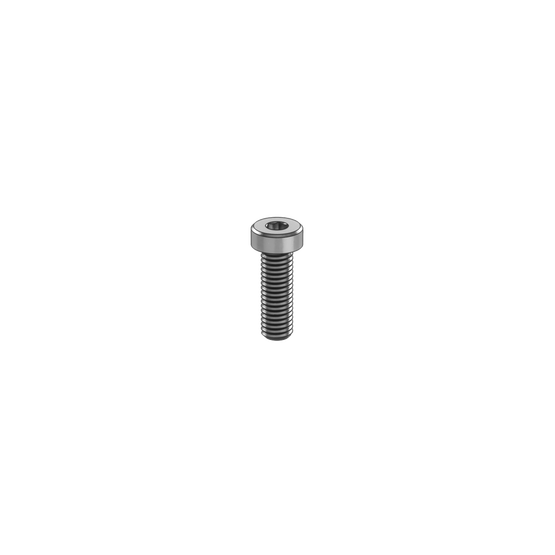

	M8 x 25mm ScrewHW-FN-003-0025 - 30 X 13 X 13 mmShips next day	3
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	9
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	9
	M6 x 1.0 x 16mm, Low Profile Socket HeadHW-FN-005-0016 - 20 X 10 X 10 mmShips next day	9
	M6 x 1.0 x 25 mm, Low Profile Socket HeadHW-FN-005-0025 - 29 X 10 X 10 mmShips next day	3
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 23 X 8 X 8 mmShips next day	5
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	13
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 2 X 16 X 16 mmShips next day	9
