Machine Scope test

Community design

test test_2

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-SR-9801
Weight	306.02 kg
Dimensions (L x W x H)	5199 x 4847 x 1077 mm
Application	Assembly
Assembly Time	18:37

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 2 - Four DriveCE-CL-010-0004 - 392 X 293 X 150 mm	6
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	12
	Roller Conveyor, 855mm x 450mm Unpowered, Low SideMO-CV-118-0855 - 450 X 943 X 67 mmShips next day	4
	GF Nylon Eccentric RollerMO-LM-001-0027 - 55 X 55 X 52 mmShips next day	2
	GF Nylon Concentric RollerMO-LM-001-0028 - 52 X 52 X 52 mmShips next day	2
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	1
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 3 days	9
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips in 3 days	9
	16mm Precision Fit Plain Linear Bearing with HousingMO-LM-010-0010 - 43 X 43 X 35 mmShips next day	1
	16mm Compensated Fit Plain Linear Bearing with HousingMO-LM-010-0012 - 43 X 43 X 35 mmShips next day	2

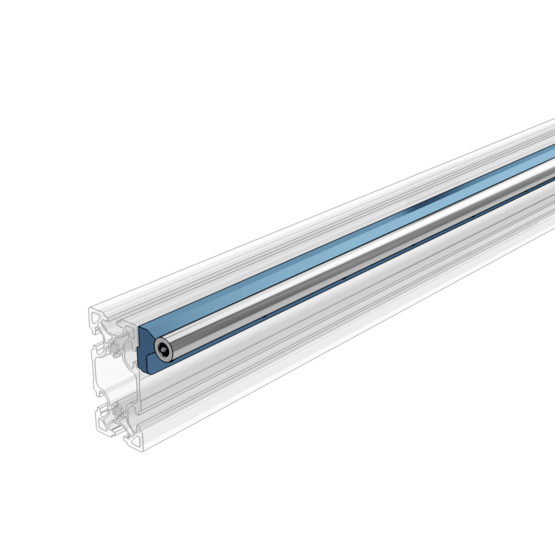

	16mm Shaft for Linear Bearings (585mm)MO-LM-014-0585__2 - 585 X 35 X 32 mmComing soon	3
	16mm Shaft for Linear Bearings (1530mm)MO-LM-014-1530__2 - 1530 X 35 X 32 mmComing soon	2
	16mm Shaft for Linear Bearings (2295mm)MO-LM-014-2295__2 - 2295 X 35 X 32 mmComing soon	6
	Left Timing Belt Sensor BumperMO-LM-015-0001__2 - 102 X 19 X 30 mmShips next day	12
	Timing Belt Actuator (585mm)MO-LM-016-0585__2 - 765 X 67 X 120 mmShips in 3 weeks	1
	Timing Belt Actuator (1080mm)MO-LM-016-1080__2 - 1260 X 67 X 120 mmShips next day	1
	Timing Belt Actuator (1215mm)MO-LM-016-1215__2 - 1395 X 67 X 120 mmShips next day	1
	Timing Belt Actuator (2295mm)MO-LM-016-2295__2 - 2475 X 67 X 120 mmShips next day	3
	157mm NEMA 34 Stepper Servo MotorMO-SM-011-0000 - 258 X 86 X 112 mm	6
	45x90mm (810mm) Aluminum ExtrusionST-EXT-002-0810 - 810 X 45 X 90 mmShips next day	2
	90x90mm (1440mm) Aluminum ExtrusionST-EXT-005-1440 - 1440 X 90 X 90 mmShips next day	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	327
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	26
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	9
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	26
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	47
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	17
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	51
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	212
	E-Stop Module with ResetCE-SA-007-0000 - 145 X 88 X 70 mmShips in 3 days	2
