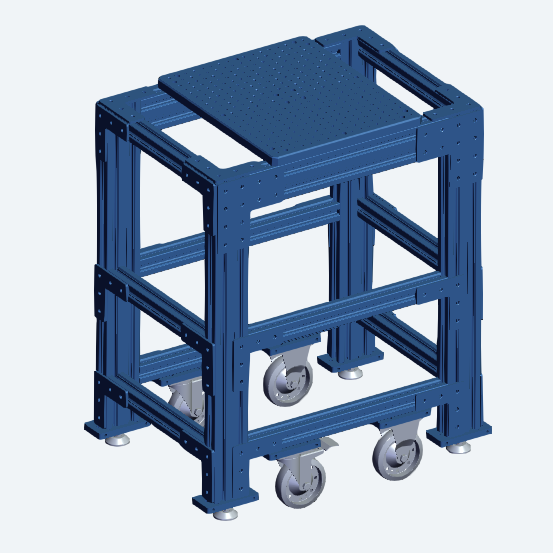

Height Adjustable Support for Robot Arm

Community design

Heavy-duty support for robot arm. Support can be easily moved into position with the height adjustment as required and then locked in place using four leveling feet. Two high-precision mounting plates are included on the work surface to interface with the robot base. Structure can support up to 600kg.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-269
Weight	43.78 kg
Dimensions (L x W x H)	771 x 518 x 915 mm
Application	Other Equipment
Assembly Time	05:24

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	M8 x 40mm Leveling Foot, with 40mm Diameter BaseHW-LF-001-0001 - 40 X 40 X 82 mmShips next day	4

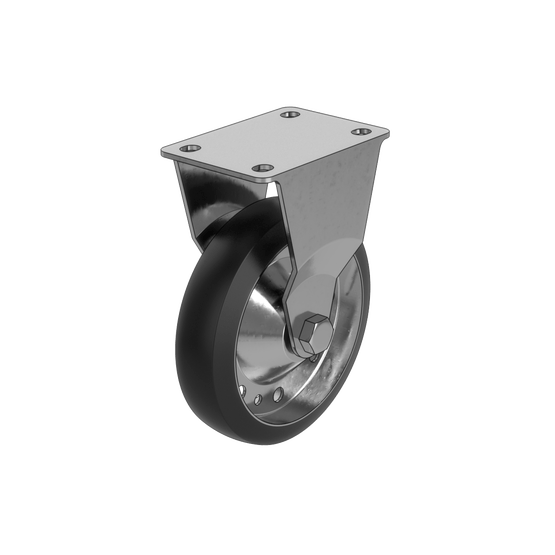

	Fixed Caster Wheel, 120kg CapacityMO-WL-001-0001 - 95 X 68 X 130 mmObsolete	2

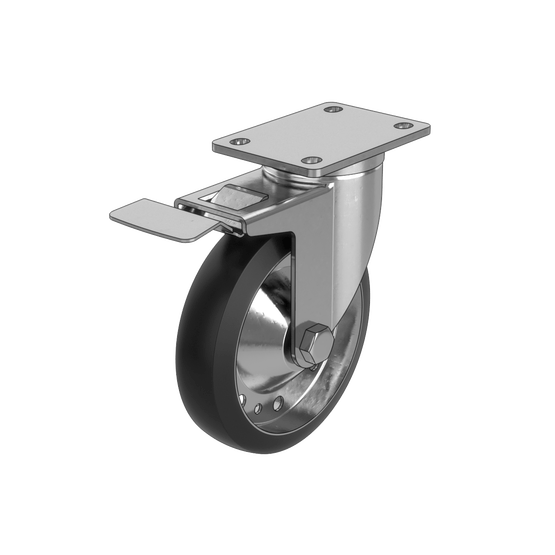

	Medium-Duty Swivel Caster Wheel with BrakeMO-WL-001-0002 - 157 X 68 X 130 mmObsolete	2
	45x45mm (405mm) Aluminum ExtrusionST-EXT-001-0405 - 405 X 45 X 45 mmShips next day	6
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips next day	4
	45x90mm (405mm) Aluminum ExtrusionST-EXT-002-0405 - 405 X 45 X 90 mmShips next day	1
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	2
	45x90mm (810mm) Aluminum ExtrusionST-EXT-002-0810 - 810 X 45 X 90 mmShips next day	4
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	24
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	4
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	4
	135x68mm Aluminum Mounting PlateST-SP-001-0001 - 11 X 135 X 68 mmObsolete	8
	405x495mm Aluminum Tooling PlateST-SP-002-0002 - 495 X 405 X 22 mmObsolete	1
	M8 x 16mm Screw With T-NutHW-FN-001-0016 - 21 X 13 X 22 mmObsolete	9
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	194
	M8 x 16mm ScrewHW-FN-003-0016 - 21 X 13 X 13 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	182
	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	5

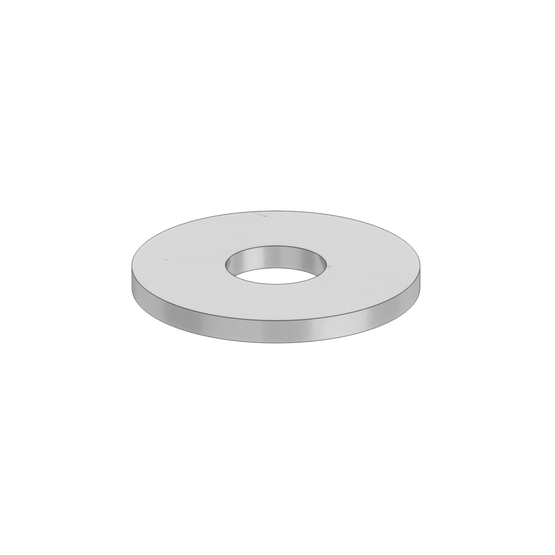

	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmComing soon	17
