Flow Rack

Community design

10 ft by 5 ft flow rack.

Spec Attribute	Spec Value
Technical Specifications
Design Number	AS-SR-122 v1
Weight	185.60 kg
Dimensions (L x W x H)	0 x 0 x 0 mm
Application	Assembly
Assembly Time	11:32

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	18
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mm	4
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	8
	Grooved Rollers, for Belt-driven ConveyorsMO-CV-001-0001 - 584 X 0 X 50 mm	112

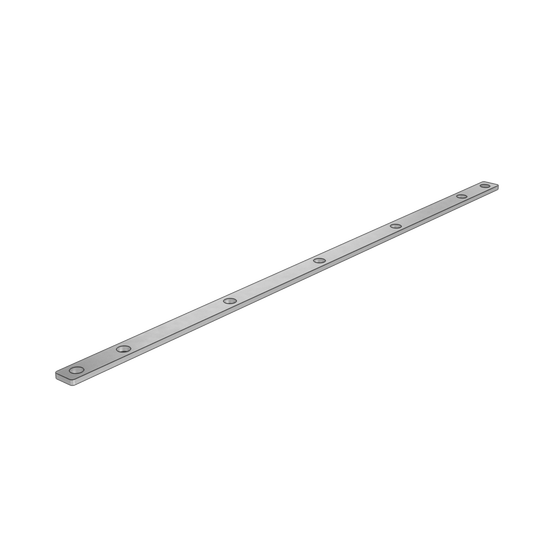

	Mounting Bracket for Conveyor RollerMO-CV-001-0002 - 450 X 15 X 3 mm	48
	Medium-Duty Swivel Caster Wheel with BrakeMO-WL-001-0002 - 157 X 68 X 130 mm	4
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips next day	4
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	12
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	4
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	4
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	12
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	4
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	20
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	4
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	2
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips next day	2
	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	22
	Tee Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0002 - 6 X 133 X 133 mmShips next day	3
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	31
	135x68mm Aluminum Mounting PlateST-SP-001-0001 - 11 X 135 X 68 mm	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	358
	T-Bar for Conveyor Mounting BracketsHW-FN-002-0003 - 67 X 14 X 8 mmShips next day	16
	M6 Drop-in Spring Loaded T-NutHW-FN-002-0004 - 22 X 13 X 9 mmShips next day	16
	Butt-Joint Extrusion ConnectorHW-FN-002-0005 - 148 X 13 X 7 mmShips next day	16
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	17
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	326
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	99
	M8 Washer with 24mm Outside DiameterHW-WS-001-0002 - 2 X 24 X 24 mmComing soon	17
