Design Number	AS-JF-2368
Weight	174.78 kg
Dimensions (L x W x H)	1624 x 2274 x 1188 mm
Application	Assembly
Assembly Time	16:22

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	MachineMotion 1CE-CL-005-0003 - 377 X 282 X 144 mmObsolete	1
	Sensor Bracket for M18 SensorCE-HW-001-0001 - 34 X 45 X 56 mmObsolete	4
	Non-Flush Inductive Proximity SensorCE-SN-004-0001 - 110 X 18 X 18 mmShips next day	5
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001__2 - 12 X 45 X 45 mmShips in 3 days	6
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001__2 - 12 X 45 X 90 mmShips in 3 days	6
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	12
	45x270mm Rest Pad HW-RP-002-0002 - 13 X 270 X 45 mmShips next day	10

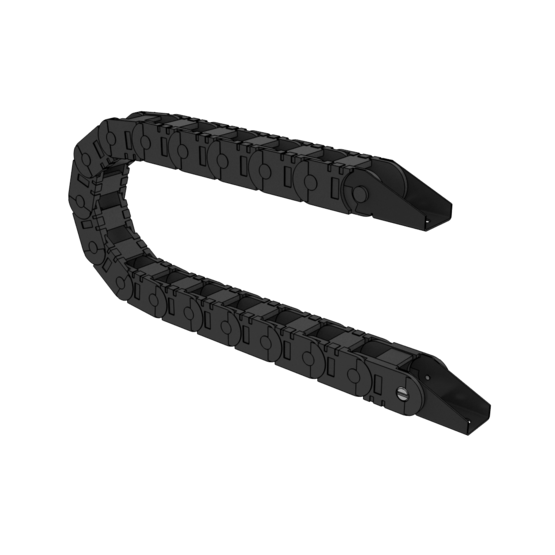

	44mm Wide Cable Drag Chain (1485mm)MO-DC-001-1485 - 1599 X 45 X 35 mmShips next day	2
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 3 days	2
	225x225 Gantry PlateMO-LM-001-0031 - 225 X 225 X 12 mmShips next day	1
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmShips in 3 weeks	1
	Ball Screw Linear Drive, 10mm lead (585mm)MO-LM-003-0585 - 692 X 225 X 90 mm	1
	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips in 3 days	10
	16mm Shaft for Linear Bearings (585mm)MO-LM-014-0585 - 585 X 31 X 33 mmShips next day	2
	16mm Shaft for Linear Bearings (1530mm)MO-LM-014-1530 - 1530 X 31 X 33 mmShips next day	3
	Left End Stop for TB ActuatorMO-LM-015-0001 - 20 X 101 X 24 mmObsolete	3
	Right End Stop for TB ActuatorMO-LM-015-0002 - 20 X 101 X 24 mmObsolete	1
	Timing Belt Actuator (1530mm)MO-LM-016-1530 - 1710 X 67 X 120 mmShips in 3 days	2
	100mm NEMA 34 Stepper MotorMO-SM-002-0001 - 168 X 86 X 86 mmObsolete	4
	45x45mm (45mm) Aluminum ExtrusionST-EXT-001-0045 - 45 X 45 X 45 mmShips next day	1
	45x45mm (135mm) Aluminum ExtrusionST-EXT-001-0135 - 135 X 45 X 45 mmShips next day	2
	45x45mm (630mm) Aluminum ExtrusionST-EXT-001-0630 - 630 X 45 X 45 mmShips next day	1
	45x45mm (1305mm) Aluminum ExtrusionST-EXT-001-1305 - 1305 X 45 X 45 mmShips next day	1
	45x90mm (135mm) Aluminum ExtrusionST-EXT-002-0135 - 135 X 45 X 90 mmShips next day	4
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	5
	45x90mm (1215mm) Aluminum ExtrusionST-EXT-002-1215 - 1215 X 45 X 90 mmShips next day	2
	45x90mm (1305mm) Aluminum ExtrusionST-EXT-002-1305 - 1305 X 45 X 90 mmShips next day	5
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	4
	90x90mm (675mm) Aluminum ExtrusionST-EXT-005-0675 - 675 X 90 X 90 mmShips next day	4
	90x90mm (1530mm) Aluminum ExtrusionST-EXT-005-1530 - 1530 X 90 X 90 mmShips next day	1
	22.5x22.5mm (90mm) Aluminum ExtrusionST-EXT-006-0090 - 90 X 22 X 22 mmShips next day	1
	22.5x22.5mm (135mm) Aluminum ExtrusionST-EXT-006-0135 - 135 X 22 X 22 mmShips next day	1
	22.5x22.5mm (270mm) Aluminum ExtrusionST-EXT-006-0270 - 270 X 22 X 22 mmShips next day	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	2
	2x2 Hole Aluminum Assembly PlateST-GP-001-0003 - 88 X 88 X 6 mmShips next day	6
	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips in 3 days	2
	90 Degree Joint Aluminum Assembly Plate, for 45x90mm ExtrusionsST-GP-001-0010 - 6 X 178 X 178 mmShips next day	8

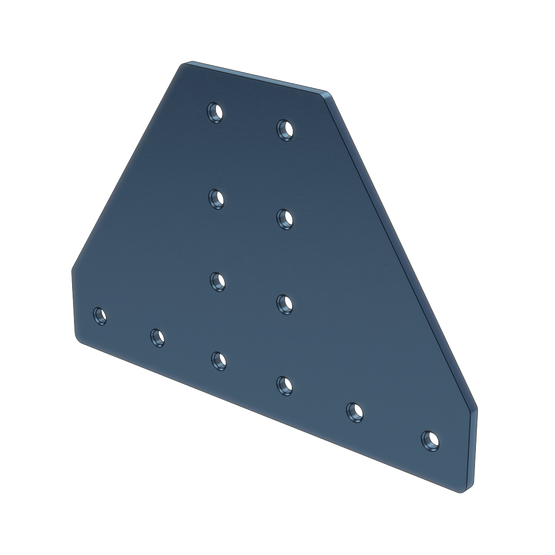

	Tee Joint Aluminum Assembly PlateST-GP-001-0011 - 6 X 268 X 178 mmShips next day	4
	90 Deg Joint Assembly Plate, for 45 x 45mm to 45 x 90mm ExtrusionsST-GP-001-0013 - 6 X 133 X 178 mmShips next day	4
	45mm x 45mm Aluminum GussetST-GP-003-0001 - 42 X 44 X 44 mmShips next day	11
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	35
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.9416 m²Ships in 3 days	1
	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.9416 m²Ships in 3 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	492
	M8 x 8mm ScrewHW-FN-003-0008 - 13 X 13 X 13 mmShips next day	2
	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	36
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	4
	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	419
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	5
	M8 x 30mm ScrewHW-FN-003-0030 - 30 X 13 X 35 mmShips next day	9
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	9
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 23 X 8 X 8 mmShips next day	5
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	51
	90 Degree Inside Corner Bracket for 22.5 x 22.5 mm ExtrusionsHW-FN-006-0001__2 - 13 X 36 X 36 mmShips next day	3
