Fatigue-Loading Test Bench

Community design

One axis fatigue-testing test bench frame, for prototyping purposes. Test bench can be fitted with step motors and a controller, to create test routines for seats, chairs or other goods requiring fatigue validation prior to commercialization. Test bench offers a mounting surface of 495mm x 405mm with the placement space of 1260mm x 1170mm within the test bench boundary. The total Z-axis displacement is approximately 625mm which can be increased.

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-270
Weight	114.15 kg
Dimensions (L x W x H)	1252 x 1400 x 1586 mm
Application	Other Equipment
Assembly Time	13:00

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty

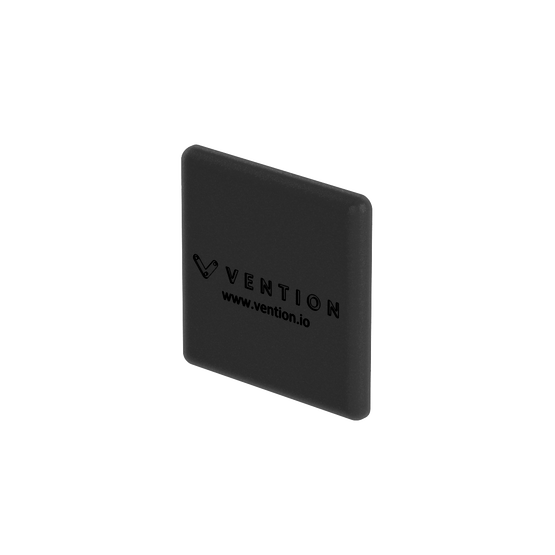

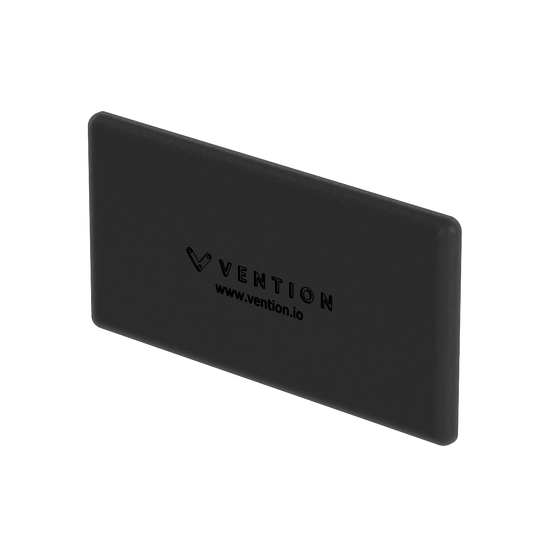

	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	2
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001 - 12 X 45 X 90 mmObsolete	2
	M8 x 40mm Leveling Foot, with 40mm Diameter BaseHW-LF-001-0001 - 40 X 40 X 82 mmShips next day	4

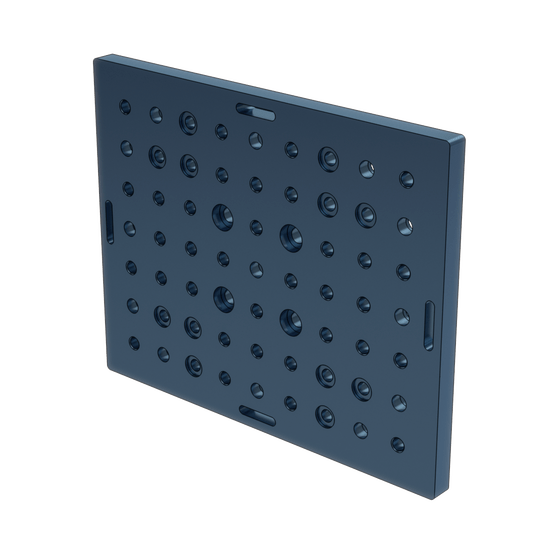

	Large Gantry PlateMO-LM-001-0009 - 225 X 180 X 12 mmShips in 3 weeks	2

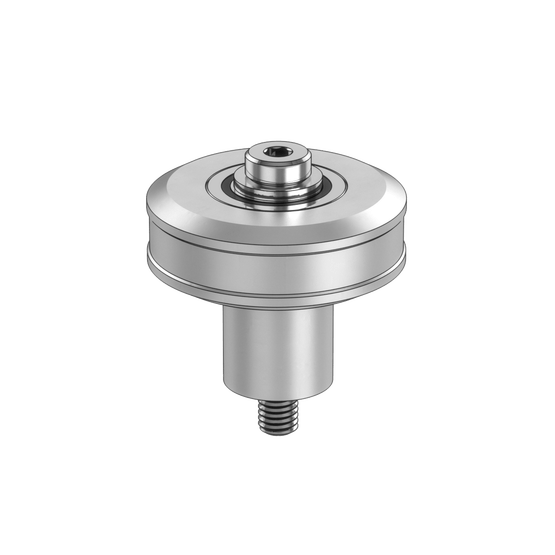

	Large Stainless Steel Roller Wheel with Concentric BushingMO-LM-001-0015 - 43 X 0 X 51 mmShips in 7 days	8
	45x45mm (180mm) Aluminum ExtrusionST-EXT-001-0180 - 180 X 45 X 45 mmShips next day	6
	45x45mm (315mm) Aluminum ExtrusionST-EXT-001-0315 - 315 X 45 X 45 mmShips next day	2
	45x45mm (540mm) Aluminum ExtrusionST-EXT-001-0540 - 540 X 45 X 45 mmShips next day	2
	45x45mm (945mm) Aluminum ExtrusionST-EXT-001-0945 - 945 X 45 X 45 mmShips next day	2
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	2
	45x90mm (450mm) Aluminum ExtrusionST-EXT-002-0450 - 450 X 45 X 90 mmShips next day	2
	45x90mm (540mm) Aluminum ExtrusionST-EXT-002-0540 - 540 X 45 X 90 mmShips next day	2
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	2
	45x90mm (810mm) Aluminum ExtrusionST-EXT-002-0810 - 810 X 45 X 90 mmShips next day	2
	45x90mm (1080mm) Aluminum ExtrusionST-EXT-002-1080 - 1080 X 45 X 90 mmShips next day	4
	45x90mm (1170mm) Aluminum ExtrusionST-EXT-002-1170 - 1170 X 45 X 90 mmShips next day	2
	45x90mm (1260mm) Aluminum ExtrusionST-EXT-002-1260 - 1260 X 45 X 90 mmShips next day	1
	45x90mm (1350mm) Aluminum ExtrusionST-EXT-002-1350 - 1350 X 45 X 90 mmShips next day	2
	45x90mm (1530mm) Aluminum ExtrusionST-EXT-002-1530 - 1530 X 45 X 90 mmShips next day	4
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	22

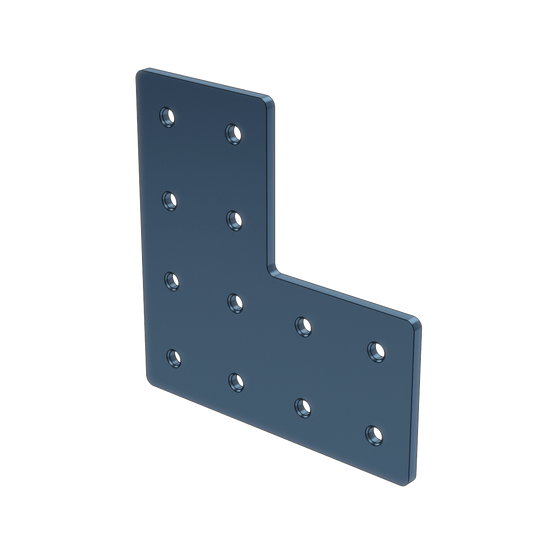

	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	16
	1x3 Hole Aluminum Assembly PlateST-GP-001-0007 - 6 X 43 X 133 mmShips next day	4

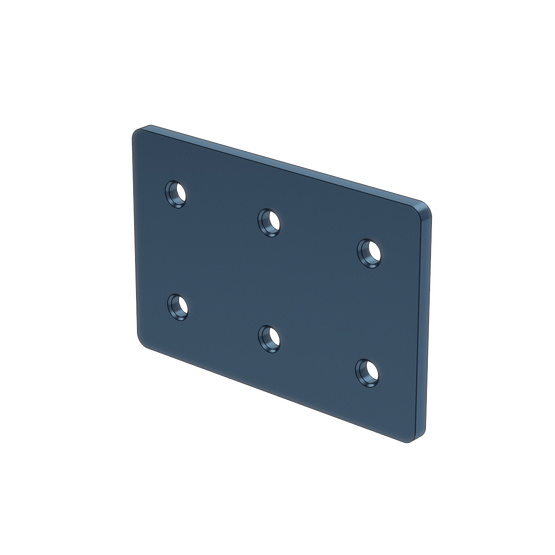

	2x3 Hole Aluminum Assembly PlateST-GP-001-0008 - 6 X 88 X 133 mmShips in 16 days	2

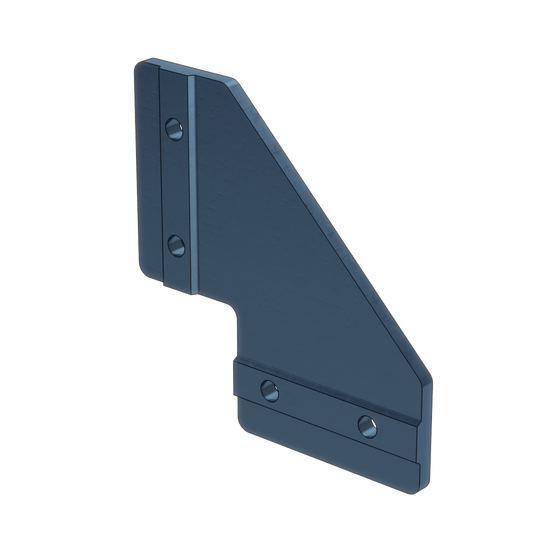

	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	16

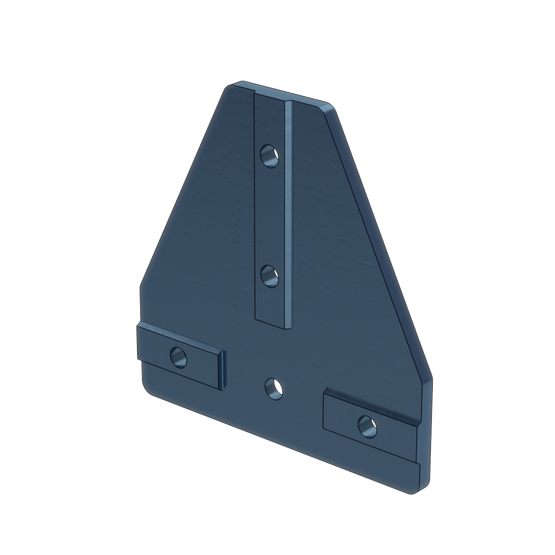

	Tee Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0002 - 6 X 133 X 133 mmShips next day	14

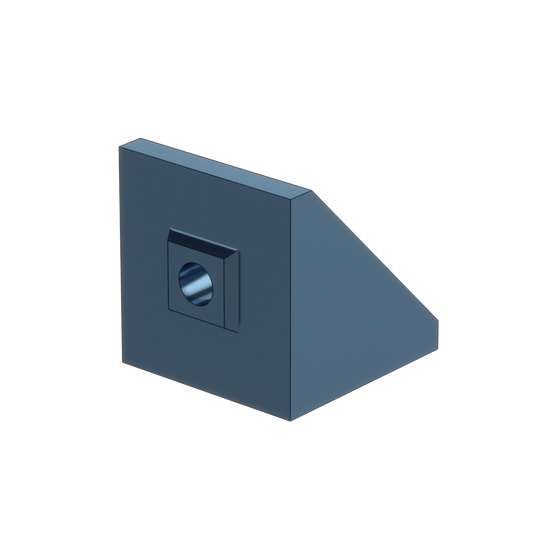

	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	5
	135x68mm Aluminum Mounting PlateST-SP-001-0001 - 11 X 135 X 68 mmObsolete	6

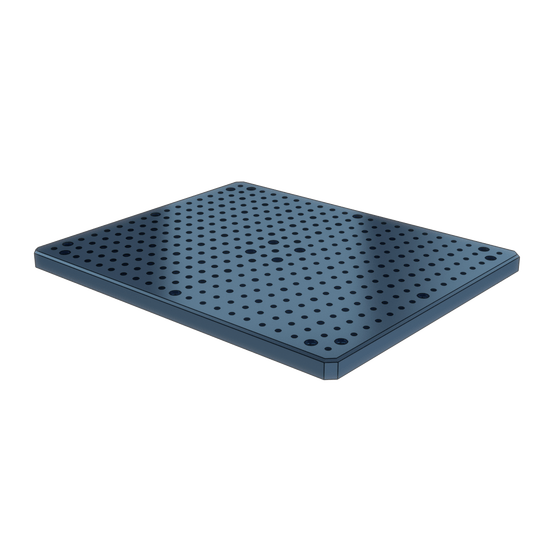

	405x495mm Aluminum Tooling PlateST-SP-002-0002 - 495 X 405 X 22 mmObsolete	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	497
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	485
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	9

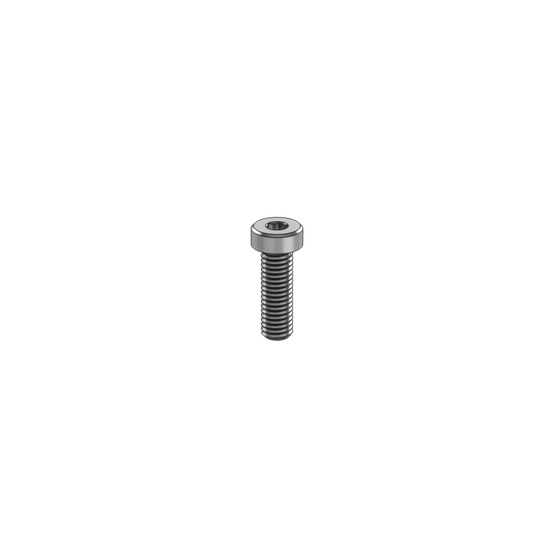

	M8 x 30mm ScrewHW-FN-003-0030 - 35 X 13 X 13 mmShips next day	5
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	9
