demo (requested design)

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	ME-OT-1149
Weight	59.54 kg
Dimensions (L x W x H)	4924 x 3480 x 810 mm
Application	Other Equipment
Assembly Time	03:24

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty

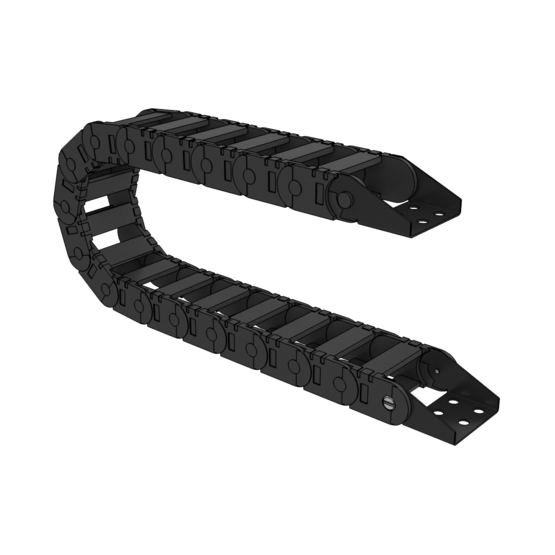

	71mm Wide Cable Drag Chain (1150mm)MO-DC-002-1125 - 1239 X 74 X 35 mmShips next day	1
	180x135mm Gantry PlateMO-LM-001-0029 - 135 X 180 X 12 mmShips next day	1
	225x180mm Gantry PlateMO-LM-001-0030 - 180 X 225 X 12 mmShips in 3 days	1

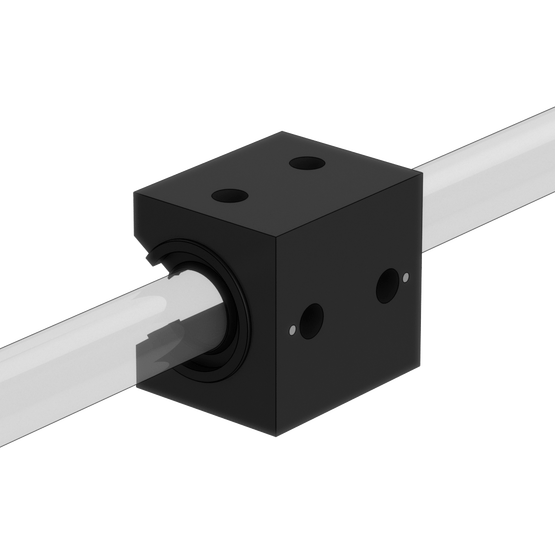

	16mm Linear Bearing with HousingMO-LM-010-0001 - 43 X 48 X 35 mmShips in 3 days	1

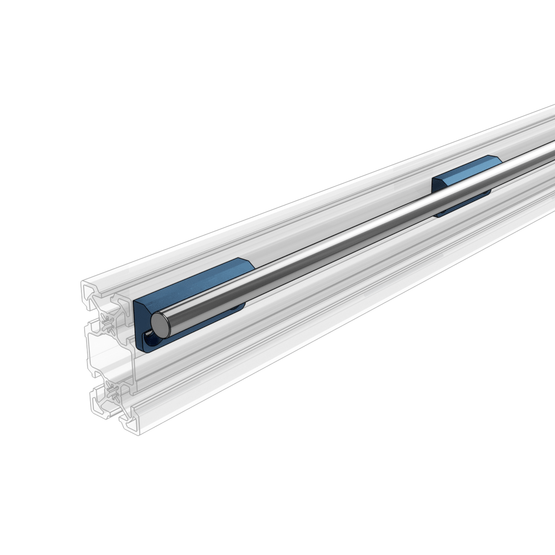

	16mm Shaft for Linear Bearings (855mm)MO-LM-014-0855 - 855 X 31 X 33 mmShips next day	1
	Right End Stop for TB ActuatorMO-LM-015-0002 - 20 X 101 X 24 mmObsolete	1

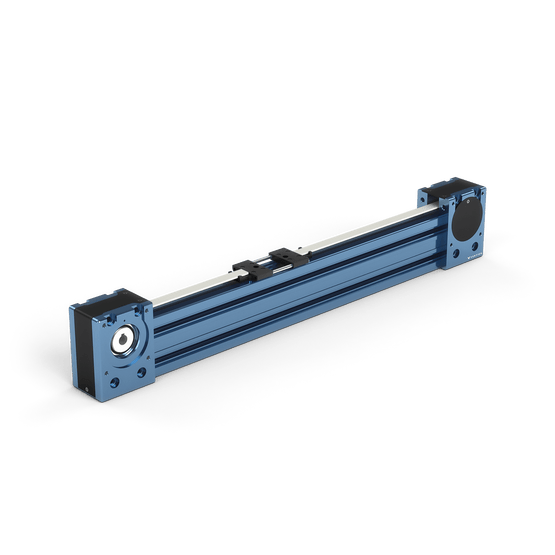

	Timing Belt Actuator (855mm)MO-LM-016-0855 - 1035 X 67 X 120 mmShips in 3 days	1
	45x45mm (495mm) Aluminum ExtrusionST-EXT-001-0495 - 495 X 45 X 45 mmShips next day	1
	45x45mm (585mm) Aluminum ExtrusionST-EXT-001-0585 - 585 X 45 X 45 mmShips next day	8
	45x90mm (585mm) Aluminum ExtrusionST-EXT-002-0585 - 585 X 45 X 90 mmShips next day	6

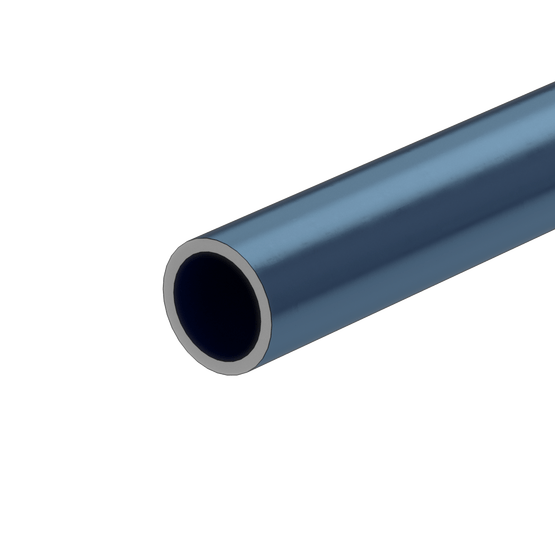

	20mm OD Round Aluminum Extrusion (585mm)ST-EXT-003-0585 - 585 X 0 X 20 mmObsolete	1
	90x90mm (585mm) Aluminum ExtrusionST-EXT-005-0585 - 585 X 90 X 90 mmShips next day	2
	22.5x22.5mm (585mm) Aluminum ExtrusionST-EXT-006-0585 - 585 X 22 X 22 mmShips next day	12
	L-Shaped Aluminum Assembly Plate, for 45 x 45mm ExtrusionsST-GP-001-0005 - 133 X 133 X 6 mmShips next day	3
	L-Shaped Aluminum Assembly Plate, for 45 x 90mm extrusionsST-GP-001-0006 - 6 X 178 X 178 mmShips next day	1
	11.25mm Spacer for 22.5x22.5mm Aluminum Extrusion with set screwsST-GP-002-0002 - 25 X 22 X 22 mmObsolete	2

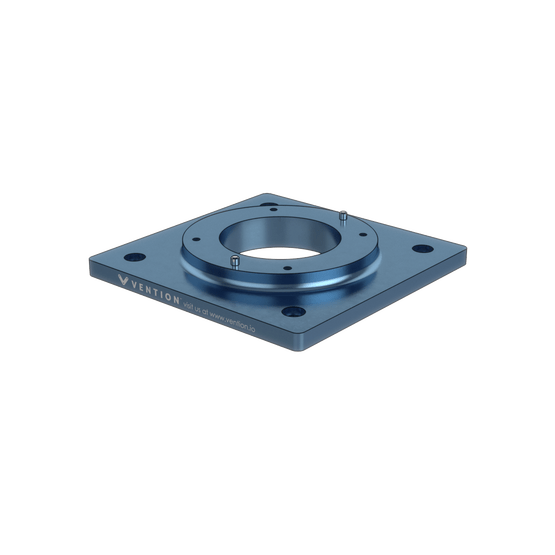

	180x180mm UR3 Mounting plate, for Universal RobotsST-RB-001-0004 - 180 X 180 X 22 mmShips in 13 days	1

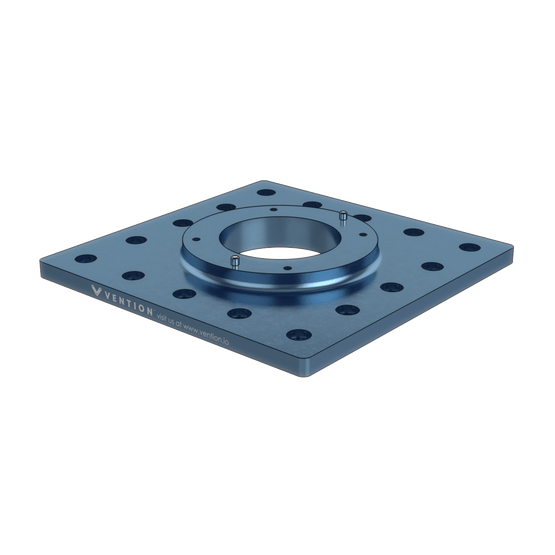

	225x225mm UR3 Mounting plate, for Universal RobotsST-RB-001-0005 - 225 X 225 X 22 mmShips next day	1

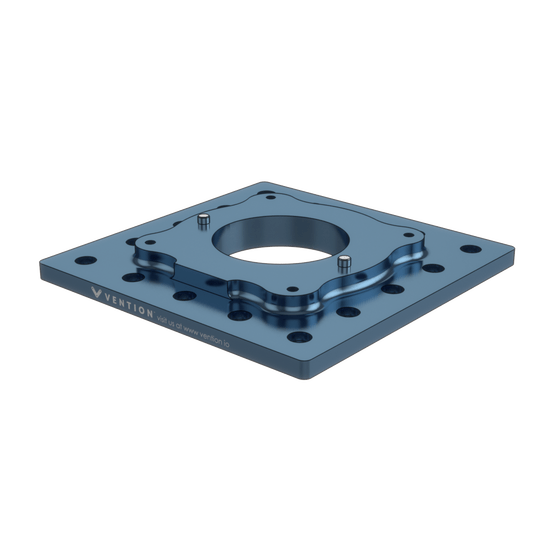

	225x225mm UR10e Mounting plate, for Universal RobotsST-RB-001-0006 - 225 X 225 X 22 mmShips next day	1

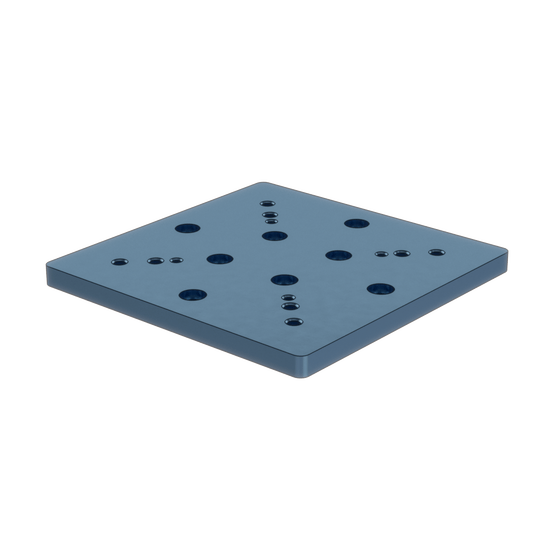

	Multi-Robot Mounting Plate 180 X 180 mmST-RB-001-0007 - 178 X 178 X 11 mmShips in 3 weeks	1
	UR10e/UR16e and FANUC CRX-10iA Mounting PlateST-RB-001-0008 - 225 X 225 X 22 mmShips next day	1
	AUBO i5 Mounting PlateST-RB-003-0001 - 225 X 225 X 22 mmShips next day	1

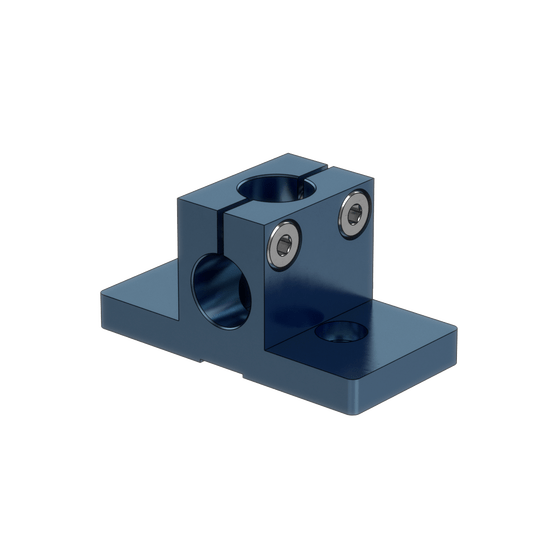

	Aluminum Tube HolderST-SP-004-0001 - 45 X 135 X 45 mmObsolete	1

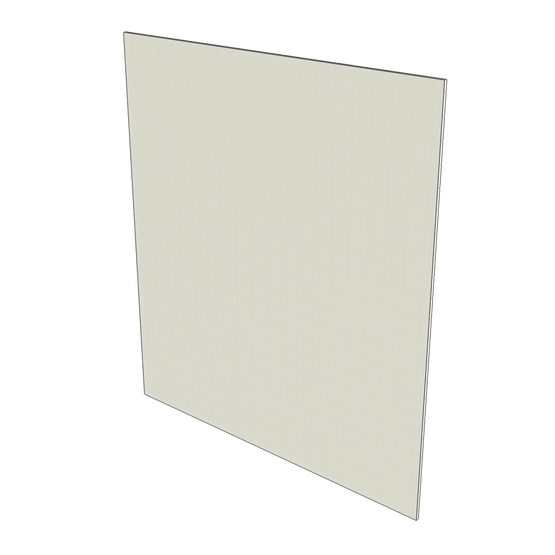

	HDPE Panel, White 1/4'' [6.35mm]ST-PN-001-0003 - 0.3685 m²Ships in 3 days	1

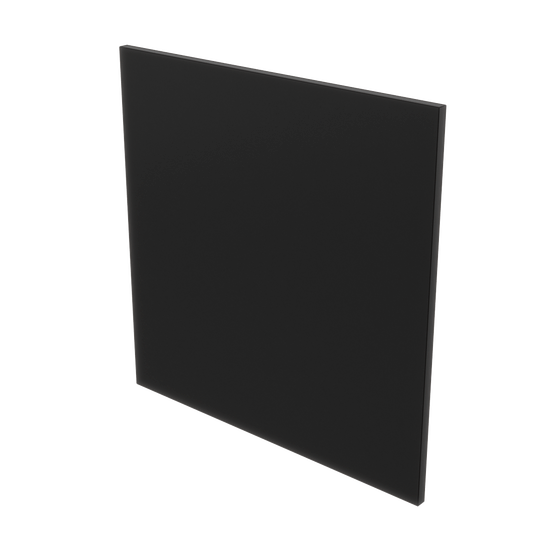

	HDPE Panel, Black 1/4'' [6.35mm]ST-PN-001-0004 - 0.3949 m²Ships in 3 days	1

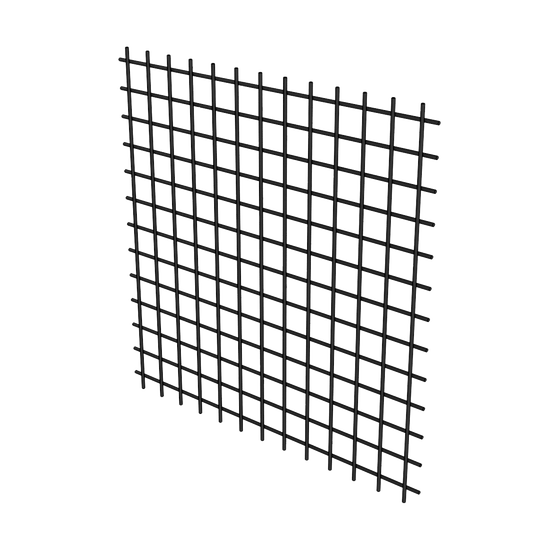

	Plastic Coated Steel Wire Mesh, 25mm Grid ST-PN-002-0001 - 0.3685 m²Ships in 3 days	1
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	86

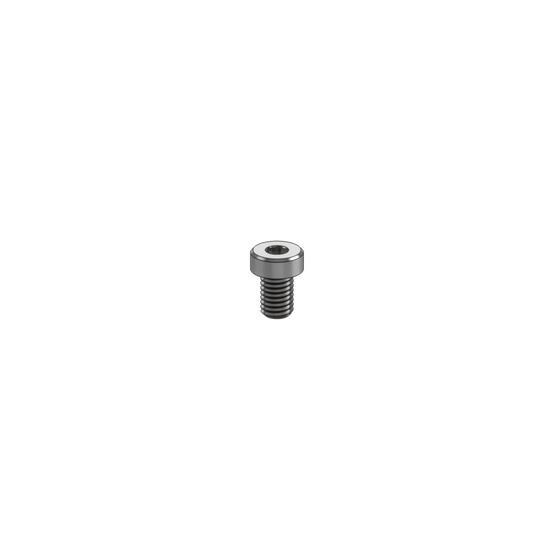

	M8 x 12mm ScrewHW-FN-003-0012 - 17 X 13 X 13 mmShips next day	21
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	3

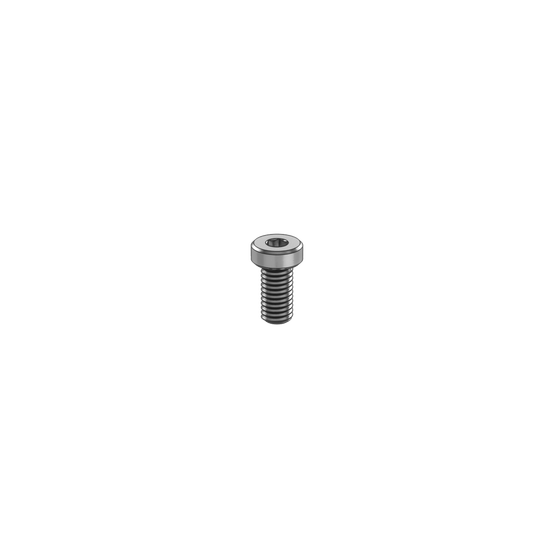

	M8 x 16mm ScrewHW-FN-003-0016 - 16 X 13 X 21 mmShips next day	3
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	57
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	5
	M8 1.25 x 18mm Flat Head ScrewHW-FN-015-0018 - 18 X 16 X 16 mmShips next day	7
