Assembly Jig - Powered Height Adjustment

Community design

Spec Attribute	Spec Value
Technical Specifications
Design Number	MH-IC-264
Weight	92.98 kg
Dimensions (L x W x H)	1133 x 1716 x 1850 mm
Application	Material Handling
Assembly Time	08:44

Spec Attribute	Spec Value
Documentation
Assembly Instructions
ROI Calculator
3D Model

Parts	Description	Quantity
Parts		Qty
	63mm Toggle ClampHW-CP-001-0001 - 50 X 139 X 106 mmShips next day	4
	45x45mm Plastic End Cap, for ExtrusionsHW-EC-001-0001 - 12 X 45 X 45 mmObsolete	4
	45x90mm Plastic End Cap, for ExtrusionsHW-EC-002-0001 - 12 X 45 X 90 mmObsolete	16
	Die-cast Aluminum HandleHW-HD-001-0001 - 140 X 25 X 40 mmShips in 7 days	1
	45x90mm Rest PadHW-RP-002-0001 - 13 X 90 X 45 mmShips next day	11
	1580mm x 16mm OD Ball Screw with Ball Nut and Shaft CollarMO-BS-003-1580 - 1580 X 40 X 48 mmObsolete	2
	Aluminum Helical Flexible Shaft CouplingMO-CP-001-0001 - 38 X 38 X 30 mmShips in 7 days	2
	45x45mm Hinge, 12mm Pin with BushingsMO-HG-002-0001 - 68 X 45 X 45 mmObsolete	2
	Large Gantry PlateMO-LM-001-0009 - 225 X 180 X 12 mmShips in 3 weeks	2
	Large Stainless Steel Roller Wheel with Concentric BushingMO-LM-001-0015 - 43 X 0 X 51 mmShips in 3 weeks	8
	Ball Screw Nut HousingMO-LM-002-0001 - 78 X 60 X 60 mmShips in 3 weeks	2

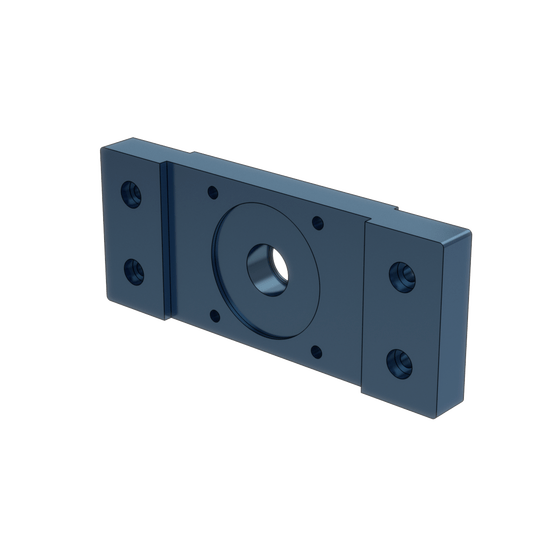

	Mounting Plate for Stepper MotorMO-LM-002-0002 - 22 X 225 X 90 mmObsolete	2
	Support Plate for Ball ScrewMO-LM-002-0009 - 22 X 225 X 90 mmObsolete	4
	156mm NEMA 34 Stepper MotorMO-SM-001-0001 - 190 X 86 X 86 mmObsolete	2
	45x45mm (990mm) Aluminum ExtrusionST-EXT-001-0990 - 990 X 45 X 45 mmShips next day	2
	45x45mm (1215mm) Aluminum ExtrusionST-EXT-001-1215 - 1215 X 45 X 45 mmShips next day	5
	45x90mm (45mm) Aluminum ExtrusionST-EXT-002-0045 - 45 X 45 X 90 mmShips next day	4
	45x90mm (225mm) Aluminum ExtrusionST-EXT-002-0225 - 225 X 45 X 90 mmShips next day	2
	45x90mm (315mm) Aluminum ExtrusionST-EXT-002-0315 - 315 X 45 X 90 mmShips next day	4
	45x90mm (1125mm) Aluminum ExtrusionST-EXT-002-1125 - 1125 X 45 X 90 mmShips next day	2
	45x90mm (1440mm) Aluminum ExtrusionST-EXT-002-1440 - 1440 X 45 X 90 mmShips next day	5
	45x90mm (1485mm) Aluminum ExtrusionST-EXT-002-1485 - 1485 X 45 X 90 mmShips next day	1
	20mm OD Round Aluminum Extrusion (90mm)ST-EXT-003-0090 - 90 X 0 X 20 mmObsolete	2
	2x4 Hole Aluminum Assembly PlateST-GP-001-0002 - 88 X 178 X 6 mmShips next day	12
	1x4 Hole Aluminum Assembly PlateST-GP-001-0004 - 178 X 43 X 6 mmShips next day	8
	90 Degree Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0001 - 6 X 133 X 133 mmShips next day	4
	Tee Joint Aluminum Assembly Plate, with LocatorsST-HP-001-0002 - 6 X 133 X 133 mmShips next day	6
	45mm x 45mm Aluminum Gusset with LocatorsST-HP-003-0001 - 42 X 44 X 44 mmShips next day	20
	135x68mm Aluminum Mounting PlateST-SP-001-0001 - 11 X 135 X 68 mmObsolete	4
	Aluminum Tube HolderST-SP-004-0001 - 45 X 135 X 45 mmObsolete	4
	M8 Drop-in Spring Loaded T-NutHW-FN-002-0001 - 22 X 13 X 7 mmShips next day	266
	M8 x 10mm ScrewHW-FN-003-0010 - 15 X 13 X 13 mmShips next day	17
	M8 x 14mm ScrewHW-FN-003-0014 - 19 X 13 X 13 mmShips next day	9
	M8 x 18mm ScrewHW-FN-003-0018 - 23 X 13 X 13 mmShips next day	244
	M8 x 20mm ScrewHW-FN-003-0020 - 25 X 13 X 13 mmShips next day	26
	M8 x 22mm ScrewHW-FN-003-0022 - 22 X 13 X 13 mmShips next day	3
	M8 x 50mm ScrewHW-FN-003-0050 - 55 X 13 X 13 mmShips next day	5
	M8 x 55mm ScrewHW-FN-003-0055 - 60 X 13 X 13 mmShips next day	17
	M8 x 70mm ScrewHW-FN-003-0070 - 75 X 13 X 13 mmShips next day	3
	M5-0.8 x 20mm ScrewHW-FN-008-0020 - 23 X 8 X 8 mmShips next day	9
	M8 Washer with 16mm Outside DiameterHW-WS-001-0001 - 2 X 16 X 16 mmShips next day	17
